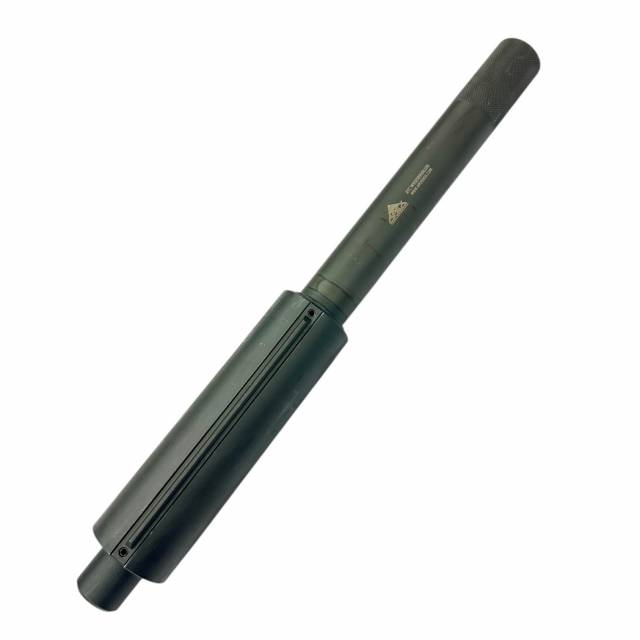

The ATC W950589006100 Clutch Alignment Tool is a precision service tool designed for aligning the clutch disc and pilot bore during installation on Detroit Diesel DD13 and DD15 engines equipped with the DT12 automated manual transmission.
Proper clutch alignment is critical on DT12 systems, where the transmission input shaft must engage perfectly with the clutch disc and pilot bearing. Unlike manual transmissions, the DT12 has tighter tolerances and relies on precise alignment to ensure smooth engagement and correct operation.
This tool centers the clutch disc in relation to the flywheel and pilot bore, allowing the transmission to be installed without resistance or misalignment.
Without proper alignment, technicians may encounter:
- Difficulty installing the transmission
- Input shaft binding or misalignment
- Premature clutch wear
- Vibration or engagement issues after installation
The W950589006100 is engineered to match the exact spline and pilot dimensions of DD13/DD15 DT12 applications, ensuring accurate and repeatable clutch positioning.
Key Features & Benefits
- Designed for Detroit Diesel DD13 & DD15 with DT12 transmission
- Accurately aligns clutch disc and pilot bearing
- Matches OEM spline and pilot dimensions
- Prevents input shaft misalignment during installation
- Reduces installation time and effort
- Helps ensure smooth clutch engagement
- Durable construction for professional use
Typical Applications
- Clutch installation and replacement
- Transmission removal and installation
- Drivetrain service and repair
- Engine and transmission overhaul procedures
- Detroit Diesel DD13 / DD15 DT12 service
Why It Matters
Clutch alignment is essential for proper drivetrain operation. Misalignment can lead to:
- Installation difficulties
- Premature clutch failure
- Transmission damage or wear
The W950589006100 ensures the clutch is properly centered, allowing for smooth transmission installation and reliable performance.
