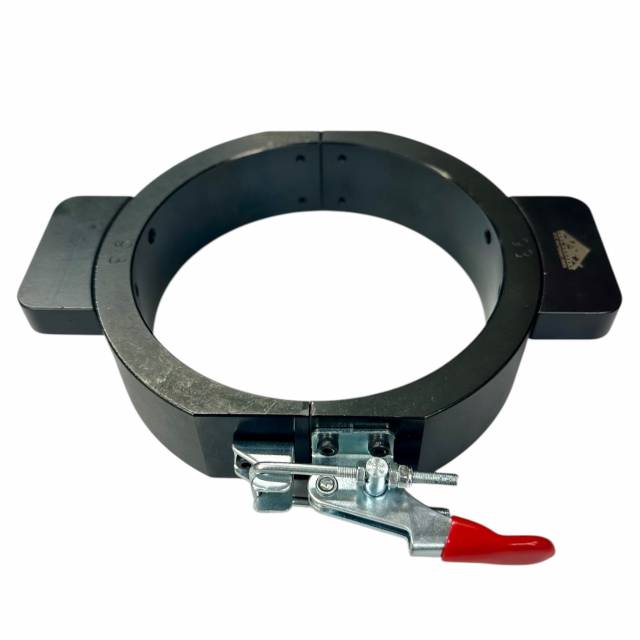

The ATC W470589015900 / J47386 Piston Ring Compressor is a precision service tool designed for installing pistons and rings into the cylinder liners on Detroit Diesel DD15 and DD16 engines.
These engines use large-bore, high-compression piston assemblies with tight tolerances between the piston rings and cylinder liner. Proper compression and alignment of the rings during installation is critical to prevent damage and ensure correct engine operation.
This tool provides a uniform compression band around the piston rings, allowing the piston to be inserted smoothly into the liner while maintaining:
- Even ring compression
- Correct ring alignment
- Protection of ring edges and coatings
Improper installation methods—such as using universal compressors or manual compression—can result in:
- Broken or chipped piston rings
- Scratched cylinder liners
- Misaligned rings leading to poor sealing
- Reduced compression and engine performance
The W470589015900 / J47386 is engineered specifically for DD15 and DD16 piston dimensions, ensuring a precise fit and controlled installation process.
Key Features & Benefits
- Designed for Detroit Diesel DD15 & DD16 engines
- Provides even compression of piston rings during installation
- Prevents ring breakage and liner damage
- Ensures proper piston entry into cylinder liner
- Improves installation accuracy and consistency
- Reduces risk of engine damage during assembly
- Heavy-duty construction for professional use
Typical Applications
- Piston and ring installation
- Engine rebuild and overhaul procedures
- Cylinder liner service
- Internal engine assembly
- Detroit Diesel DD15 / DD16 engine repair
Why It Matters
Piston installation is a critical step in engine assembly. Improper ring compression can lead to:
- Immediate ring failure
- Cylinder scoring
- Loss of compression and performance
The W470589015900 / J47386 ensures controlled, damage-free installation, helping achieve reliable engine performance and longevity.
