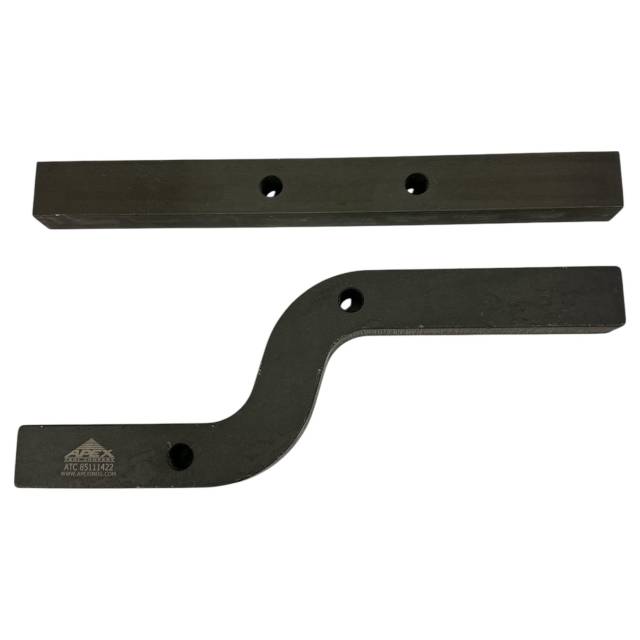

The ATC 85111422 Upper Timing Cover Alignment Tool Set is engineered to facilitate flawless installation of the upper timing gear cover on Volvo D13 and Mack MP8 / 15D engines. This alignment kit ensures that the timing cover surface sits perfectly flush with the cylinder head sealing area, helping to prevent oil leaks and maintain optimal engine integrity.
By guiding and locking the cover in exact alignment during assembly, this tool set reduces the risk of misalignment, gasket distortion, or seal failure. It is especially useful in heavy-duty repair shops, fleet maintenance operations, and engine rebuild facilities working on Volvo / Mack engine platforms.
Key Features & Benefits
-
Designed for Volvo D13 and Mack MP8 / 15D engines (upper timing cover application)
-
Aligns the timing cover surface flush with cylinder head sealing surface to prevent oil leaks
-
Helps assure proper bolt torque and even gasket seating during installation
-
Reduces risk of gasket failure, misalignment, and cover warpage
-
Robust, shop-grade construction suitable for repeated use in heavy-duty environments
Usage & Applications
Use the 85111422 kit during timing cover reinstallation after maintenance, overhaul, or gasket replacement. The tool holds the cover accurately in place while bolts are torqued, ensuring the cover remains seated evenly. It is essential for technicians working on Volvo D13 / Mack MP8 engine series to reduce errors and maintain long-term engine reliability.
