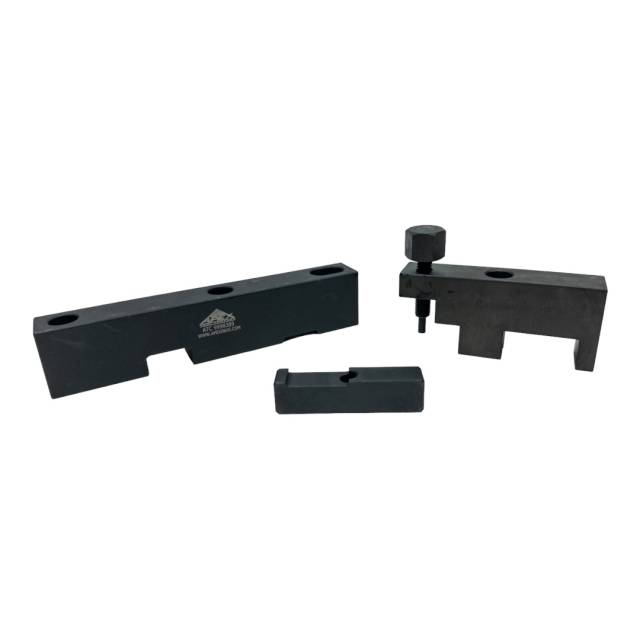

The ATC 9998389 Timing Gear Cover Guide Tool is a precision alignment tool designed to assist with accurate fitting and positioning of the timing gear cover on Volvo Trucks D12 and D13 diesel engines. Engineered as a direct functional equivalent to OEM tool 9998601/9998389, this guide tool ensures the timing cover is installed squarely and concentrically to the engine block, helping prevent seal misalignment, oil leaks, and premature component wear.
On Volvo D12 and D13 engines, the timing gear cover must be precisely aligned to maintain correct clearances for the front crankshaft seal and internal timing components. Misalignment during installation can cause front seal damage, oil leakage, gear noise, or repeat repairs. The ATC 9998389 positively locates the cover during assembly, removing guesswork and supporting repeatable, OEM-level results.
Designed for professional diesel technicians, dealership service departments, fleet maintenance operations, and engine rebuild shops, this tool is built for durability and consistent accuracy in demanding shop environments.
Key Features & Benefits
-
Engine-Specific Application: Designed for Volvo D12 and D13 timing gear cover alignment.
-
OEM-Equivalent Tooling: Functional replacement for Volvo 9998601 & 9998389.
-
Accurate Cover Positioning: Ensures proper alignment prior to final fastener torque.
-
Helps Prevent Oil Leaks: Supports correct front seal alignment and long-term sealing integrity.
-
Professional-Grade Construction: Durable design for repeated heavy-duty shop use.
Typical Applications
-
Timing gear cover installation during engine repair or overhaul on Volvo D12/D13 engines.
-
Front seal service where precise cover alignment is required.
-
Use in diesel repair shops, fleet service facilities, and professional engine rebuild operations.
Why It Matters
The timing gear cover plays a critical role in sealing and protecting the front of the engine. Even minor misalignment can compromise the front seal and lead to costly oil leaks. The ATC 9998389 Timing Gear Cover Guide Tool ensures correct positioning from the start, helping technicians deliver reliable, leak-free repairs.
