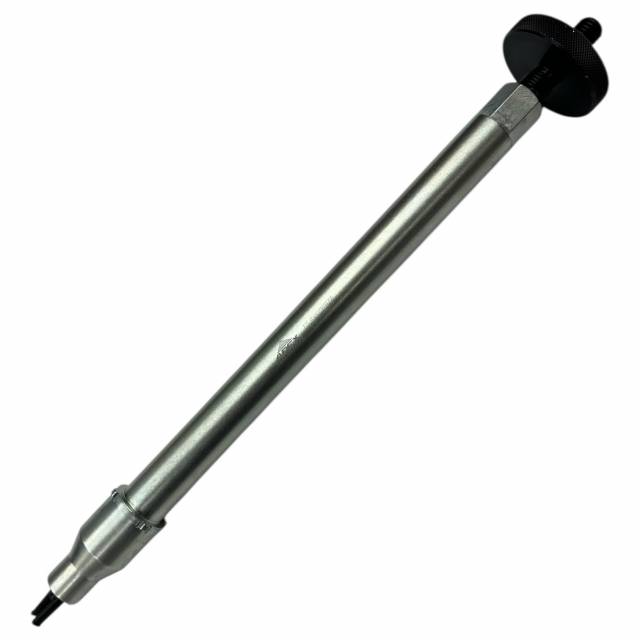

The ATC W93658900700 Injector Cup Removal & Installation Tool is a precision-engineered service tool designed for safe and efficient removal and installation of injector cups in Detroit Diesel DD5 engines. Injector cups (also known as injector sleeves) are critical components that seal the interface between the fuel injector and the cylinder head, ensuring proper fuel delivery, combustion efficiency, and coolant isolation.
During service, injector cups can become carbon-seized, corroded, or tightly press-fit into the cylinder head. Attempting removal with improper tools can result in head damage, distorted cups, or sealing surface failure, leading to coolant leaks or injector misalignment. This tool is specifically designed to eliminate those risks by providing positive engagement and controlled extraction force.
The ATC W93658900700 utilizes a 2 part expanding jaw design that securely grips the injector cup from within, allowing technicians to remove or install the cup without slipping or damaging the bore. This same design ensures proper alignment during installation, helping seat the new cup evenly and to the correct depth.
Built for professional use, this tool is ideal for diesel repair facilities, fleet maintenance operations, and engine rebuild shops servicing Detroit Diesel DD5 platforms.
Key Features & Benefits
-
Designed for Detroit Diesel DD5 engines
-
Removes and installs injector cups directly from the cylinder head
-
Two Jaw expanding jaw design ensures secure internal grip (stronger than aftermarket 4 tooth version)
-
Provides controlled extraction and installation to prevent damage
-
Helps maintain proper sealing and injector alignment
-
Heavy-duty, precision-machined construction for repeated shop use
-
Reduces downtime and improves service efficiency
Typical Applications
-
Removal of worn, damaged, or seized injector cups (sleeves)
-
Installation of new injector cups during engine repair or overhaul
-
Fuel system service and injector replacement procedures
-
Detroit Diesel DD5 engine maintenance in trucks and medium-duty applications
Why It Matters
Injector cups are essential for maintaining proper separation between fuel and coolant passages in diesel engines. Improper removal or installation can lead to:
-
Coolant contamination in the fuel system
-
Loss of injector sealing
-
Reduced engine performance
-
Costly cylinder head damage
The ATC W93658900700 Injector Cup Tool ensures a safe, precise, and repeatable service process, protecting critical engine components while improving repair quality and reliability.
