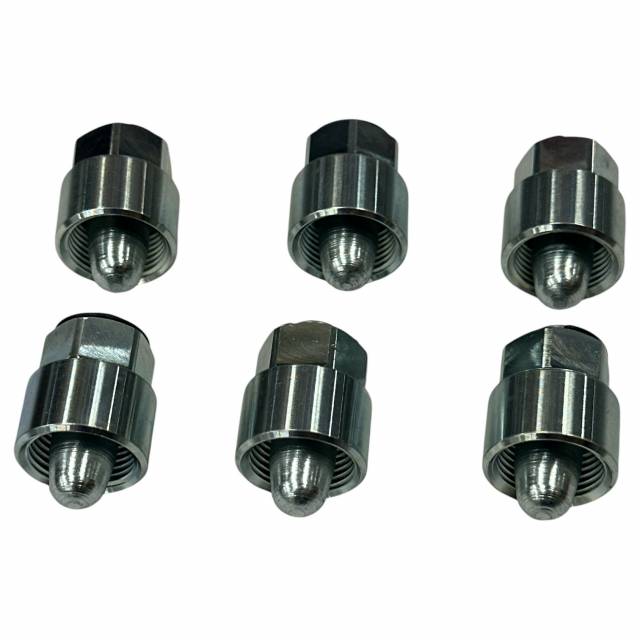

The ATC W936589019100 High Pressure Fuel Rail Test Caps are a specialized service tool set designed for isolating the high-pressure common rail and injector outlets on Detroit Diesel DD5 engines during fuel system diagnostics and repair.
Included in the Detroit Diesel DD5 Essential Tool Program, these caps are used to block off the fuel rail-to-injector connections when testing or servicing the high-pressure fuel system. They allow technicians to isolate individual sections of the fuel system, helping identify leaks, verify rail integrity, and diagnose pressure-related faults without introducing unnecessary variables into the test procedure.
The kit includes six precision-machined test caps, allowing every injector outlet on the fuel rail to be sealed simultaneously. This enables technicians to:
- Isolate the high-pressure fuel rail
- Perform fuel pressure retention testing
- Check for injector or rail leakage
- Verify repairs after injector or fuel rail service
- Diagnose hard-start, low rail pressure, and fuel system performance concerns
Unlike makeshift plugs or damaged injector fittings, these caps are designed to withstand the extremely high pressures generated by the DD5 common rail fuel system while providing a secure, leak-free seal.
The W936589019100 is commonly used during:
- High-pressure fuel rail diagnostics
- Injector replacement
- Fuel rail replacement
- High-pressure fuel pump service
- Engine overhaul verification
Because modern common rail systems operate at extremely high injection pressures, accurately isolating the fuel rail is essential for diagnosing leaks before replacing expensive injectors, pumps, or rails.
Key Features & Benefits
- Designed specifically for Detroit Diesel DD5 engines
- OEM Reference: W936589019100
- Includes six high-pressure fuel rail test caps
- Blocks fuel rail-to-injector outlets during testing
- Allows isolation of the common rail for pressure diagnostics
- Helps locate injector, rail, or high-pressure fuel system leaks
- OEM-style design for secure, leak-free sealing
- Heavy-duty construction for repeated professional use
- Listed as a Detroit Diesel DD5 Essential Service Tool
Typical Applications
- High-pressure fuel rail pressure testing
- Injector leak diagnosis
- Fuel rail replacement
- High-pressure fuel pump service
- Engine diagnostics
- Engine overhaul verification
- DD5 fuel system repairs
Why It Matters
The DD5 common rail fuel system operates at extremely high fuel pressures, where even a minor internal leak can cause:
- Hard starting
- Low rail pressure fault codes
- Reduced engine performance
- Extended crank times
- Failed injector performance tests
The W936589019100 test caps allow technicians to isolate the rail quickly and accurately, helping determine whether a pressure loss originates in the rail, injectors, or another high-pressure component before replacing costly parts.
