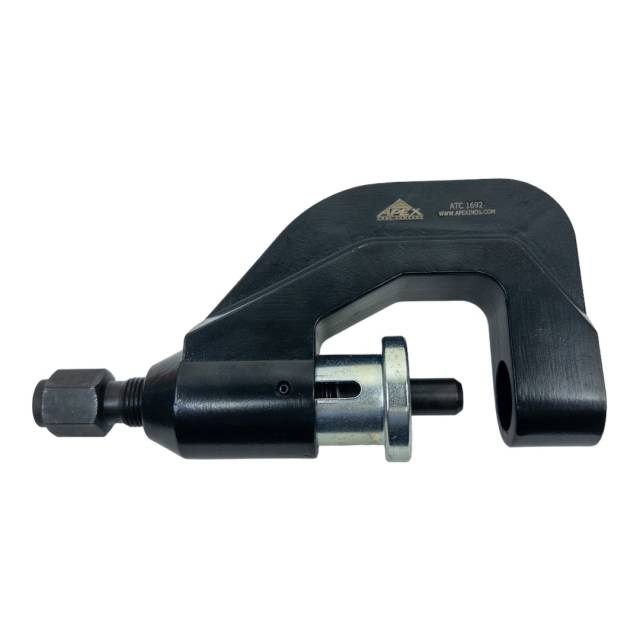

ATC1692 Brake Clevis Pin Press 10501

The ATC1692 Brake Clevis Pin Press – 10501 is a heavy-duty service tool engineered to remove and install brake clevis pins on truck and trailer slack adjuster assemblies. This precision press is designed to shear off the cotter pin during removal, allowing the clevis pin to be extracted quickly and efficiently without excessive hammering or prying.

Featuring a spring-loaded self-centering plunger, the tool automatically positions itself over the brake clevis pin for accurate alignment. It applies controlled, straight pressing force to prevent damage to slack adjusters, brake chambers, yokes, bushings, and linkage components. This eliminates the risks associated with improvised removal methods that can bend hardware or misalign brake components.

Designed as a direct replacement for TG 10501, this universal clevis pin press fits most makes and models of Class 6–8 truck and trailer brake systems. It is commonly used on heavy-duty platforms including Kenworth, Peterbilt, Freightliner, Mack, Volvo, and other commercial equipment manufacturers.

Key Features & Benefits

Brake clevis pin press: Designed for installation and removal of slack adjuster clevis pins.
Shears cotter pins automatically: Simplifies removal without additional cutting tools.
Spring-loaded self-centering plunger: Ensures accurate alignment over the pin.
Controlled pressing force: Reduces risk of damage to brake hardware and linkages.
Universal heavy-duty fitment: Compatible with most Class 6–8 truck and trailer brake systems.
Direct replacement: Replaces TG 10501 clevis pin press tool.
Professional-grade construction: Built for repeated shop and fleet maintenance use.

Typical Applications

Removing seized or corroded clevis pins from brake slack adjusters.
Installing new clevis pins during brake overhaul or rebuild procedures.
Brake chamber and slack adjuster service.
Heavy-duty brake maintenance on Class 6–8 trucks, trailers, buses, and vocational equipment.

Why It Matters

Clevis pins play a critical role in maintaining proper brake system alignment and performance. Improper removal can result in bent components, uneven braking, or premature wear. The ATC1692 Brake Clevis Pin Press – 10501 ensures accurate, damage-free service—improving safety, reducing downtime, and enhancing overall brake system reliability.
