Stop Front Crankshaft Seal Leaks: ATC ZTSE4516 Installer for 6.0L Ford Powerstroke

By Blogdashfdhd Adminvsbgfsf •
Stop Front Crankshaft Seal Leaks: ATC ZTSE4516 Installer for 6.0L Ford Powerstroke

Stop Front Crankshaft Seal Leaks: ATC ZTSE4516 Installer for 6.0L Ford Powerstroke

ATC ZTSE4516 Front Crankshaft Seal and Wear Ring Installer for Ford Powerstroke 6.0L.

Front crankshaft seal leaks are the silent profit killer for diesel shops working on Ford Powerstroke 6.0L engines. Wrong depth, damaged wear rings, or improper installation creates expensive comebacks—and angry customers. The ATC ZTSE4516 Front Crankshaft Seal and Wear Ring Installer (Ford 303-761 replacement) is engineered for E-Series vans, Super Duty trucks (F-250–F-750), and Excursion models equipped with 6.0L Power Stroke Diesel from 2003–2010. This precision tool installs the seal and wear ring at factory-correct depth every time—no leaks, no comebacks, no guesswork.

GET FRONT SEAL INSTALLER NOW – $145
6.0L Powerstroke • E-Series/Super Duty/Excursion • Ford 303-761 Replacement

Why Front Crankshaft Seals Fail: The Hidden Cost

Front crankshaft seal failures are different from rear seals—and far more common on 6.0L Powerstroke engines. The causes are insidious:

  • Coolant contamination – Coolant in the seal cavity destroys seal material
  • Wrong wear ring depth – Improper seating creates oil weeping
  • Damaged seal lip – Installation without proper tools scratches the seal
  • Worn harmonic balancer – Seal rides on damaged surface, leaks immediately
  • Repeated comebacks – Warranty claims: $800–$1,200 per seal replacement

The ATC ZTSE4516 solves this with a precision hub that sets correct seal depth automatically. The included wear ring seats perfectly, and the installation procedure ensures zero damage to the seal lip.

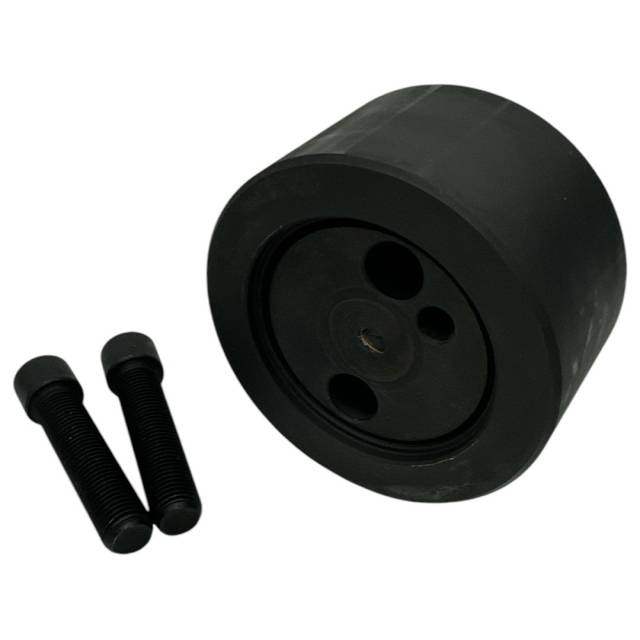

ATC ZTSE4516 front seal installer components and wear ring.

Complete 6.0L Powerstroke Application Coverage

Ford E-Series Vans (6.0L Diesel):

  • E-150 (2004-2010)
  • E-250 (2004-2010)
  • E-350 (2004-2010)
  • E-450 (2004-2010)

Ford Super Duty Trucks (6.0L Diesel):

  • F-250 (2003-2007)
  • F-350 (2003-2007)
  • F-450 (2003-2007)
  • F-550 (2003-2007)
  • F-650 (2004-2007)
  • F-750 (2004-2007)

Ford Excursion (6.0L Diesel):

  • 2003, 2004, 2005

ATC ZTSE4516 Specifications & Features

Specification Detail
SKU ATCZTSE4516
Price $145.00
Shipping Weight 5 lbs
Replaces ZTSE-4516, Ford 303-761
Application 6.0L Ford Powerstroke (2003-2010)
Key Feature Factory-correct seal depth + wear ring seating

Stop Front Seal Leaks—Protect Your Reputation

One warranty claim costs more than this tool 8X over.

ORDER ATC ZTSE4516 NOW → $145
ATC ZTSE4516 front crankshaft seal installer hub and wear ring assembly.

ROI: ATC ZTSE4516 Pays for Itself Immediately

Front Seal Comebacks (Wrong Tool)

  • Seal + labor: $800
  • Customer callback: $200
  • Lost productivity: $150
  • Per comeback: $1,150+

ATC ZTSE4516

  • Tool investment: $145
  • Zero comebacks
  • 20-minute installs
  • ROI: First 2 jobs

Pro Installation Checklist

Every Front Seal Job – Critical Steps

✅ Remove harmonic balancer carefully (inspect for damage)
✅ Clean crankshaft nose thoroughly with solvent
✅ Inspect balancer surface (must be smooth)
✅ Install wear ring on hub of installer
✅ Place new seal on wear ring (keep together)
✅ Use only light lubrication (50/50 water/detergent)
✅ Hand-install seal carefully to correct depth
✅ Verify seal and wear ring seating

Ford 6.0L Shops: Eliminate Front Seal Comebacks Today

ADD TO CART • ATC ZTSE4516

Perfect Seal Depth = Repeat Business

The Front Seal Tool Every Powerstroke Shop Needs

BUY NOW → $145
✅ 6.0L Powerstroke (2003-2010)
✅ E-Series/Super Duty/Excursion
✅ Ford 303-761 Replacement
