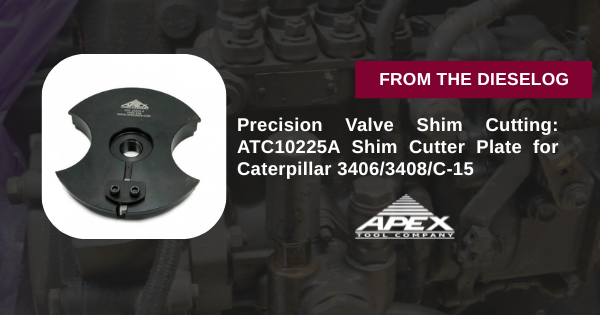

Precision Valve Shim Cutting: ATC10225A Shim Cutter Plate for Caterpillar 3406/3408/C-15
Precision Valve Shim Cutting: ATC10225A Shim Cutter Plate for Caterpillar 3406/3408/C-15
Valve shim adjustment on Caterpillar 3406, 3408, and C-15 engines requires precision cutting to achieve exact clearances. Improper shims cause valve noise, compression loss, and engine damage. The ATC10225A Shim Cutter Plate (5.4" Bore) is engineered for professional valve service on heavy-duty Caterpillar diesel engines. Designed for use with Porta-Tool Cutter, M50133, and M50139 cutters, this replacement for discontinued PT 2400-15A enables shops to cut precision shims quickly and accurately. Perfect valve clearances maintain engine performance, reduce noise, and prevent costly damage—making this an essential tool for Cat engine specialists.
Why Precision Valve Shim Adjustment Matters
Incorrect valve shim clearances create serious engine problems that compound over time:
- Tight shims (too small clearance) – Valve doesn't fully close = compression loss, overheating, bent valves
- Loose shims (excessive clearance) – Increased valve noise, uneven opening, late valve events, power loss
- Inconsistent shims – Some cylinders tight, others loose = uneven engine performance, vibration
- Worn shims not replaced – Thickness changes with wear = cumulative clearance problems = valve damage
- Field-cut shims without proper tools – Inaccurate cuts = poor clearances = repeat jobs = wasted labor
The ATC10225A eliminates guesswork with precision-engineered cutting for exact shim dimensions. Proper clearances maintain valve timing, reduce noise, prevent overheating, and extend engine life.
Complete Caterpillar Engine Coverage
Engine Models & Specifications:
- Caterpillar 3406 – Heavy-duty industrial and marine applications
- Caterpillar 3408 – High-displacement industrial diesel
- Caterpillar C-15 – Modern heavy-duty truck engine
Shim Cutter Compatibility:
- 5.4" Bore Size – Precision match for Cat engine valve shims
- Works with: Porta-Tool Cutter, M50133, M50139 models
- Replaces: PT 2400-15A (discontinued part number)
Valve Shim Application:
-
Inlet valves • Exhaust valves • Precision clearance cutting
Thickness: Various shim thicknesses cut to exact OEM specifications
ATC10225A Specifications & Features
Precision Shim Cutting = Reliable Valve Clearance
Perfect clearances = quiet engine + longer life + better performance.
ORDER NOW → $360Key Benefits & Applications
- ✅ Precision Cutting
Engineered bore geometry for exact shim dimensions - ✅ Perfect Valve Clearance
Eliminates guesswork; achieves OEM specifications exactly - ✅ Compatible with Multiple Cutters
Works with Porta-Tool, M50133, M50139 systems - ✅ Professional-Grade Construction
7 lbs precision-engineered plate rated for repeated use - ✅ OEM Replacement
Direct replacement for discontinued PT 2400-15A - ✅ Caterpillar Specialist Tool
Engineered specifically for 3406/3408/C-15 engines - ✅ Labor Efficiency
Quick, accurate shim cutting = faster head service jobs
Caterpillar Specialists: Professional Shim Cutting Starts Here
ADD TO CART • ATC10225AROI: Professional Shim Cutting vs. Improper Clearance
Improper Valve Clearance
- Valve damage: $1,500
- Warranty claim: $1,200
- Repeat job (rework): $800
- Per failed job: $3,500+
ATC10225A
- Tool investment: $360
- Precise clearance: Every job
- Zero rework: Perfect fit
- ROI: First failed job avoided
Professional Shim Cutting Checklist
Every Valve Shim Job – Critical Steps
Perfect Valve Clearance = Engine Reliability
The Shim Cutter Plate Every Cat Specialist Needs
BUY NOW → $360✅ Porta-Tool/M50133/M50139 Compatible
✅ Professional-Grade • Precision Cutting
