Perfect Liner Height Measurement: ATC1P-2402 Caterpillar Liner Height Gauge for Engine Rebuilds

By Blogdashfdhd Adminvsbgfsf •
Perfect Liner Height Measurement: ATC1P-2402 Caterpillar Liner Height Gauge for Engine Rebuilds

Perfect Liner Height Measurement: ATC1P-2402 Caterpillar Liner Height Gauge for Engine Rebuilds

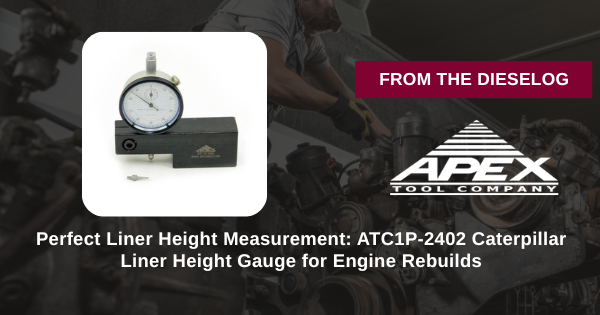

ATC1P-2402 Caterpillar Liner Height Gauge with Metric Dial Indicator professional measurement tool.

Incorrect liner protrusion height destroys Caterpillar engine rebuilds. Improper measurement = incorrect head gasket compression = coolant leaks = catastrophic engine failure. The ATC1P-2402 Caterpillar Liner Height Gauge is a precision measurement tool engineered for professional engine builders. This multi-function gauge serves as a dial depth gauge, sled gauge, liner protrusion gauge, and counterbore depth gauge—delivering accurate metric measurements for perfect liner geometry. Professional Caterpillar engine rebuilders rely on this tool for consistent, OEM-specification liner height verification, eliminating measurement errors and ensuring reliable engine performance and zero warranty claims.

GET LINER HEIGHT GAUGE NOW – $200
Caterpillar Engines • Metric Dial Indicator • Professional Grade

Why Precise Liner Height Measurement Matters

Liner protrusion height is the critical dimension controlling head gasket compression and engine sealing. Measurement errors create catastrophic failures:

  • Too low protrusion – Head gasket sits too deep = insufficient compression = gasket failure = coolant leak into oil
  • Too high protrusion – Head gasket compressed excessively = gasket extrusion and blowout = coolant/oil loss
  • Inconsistent protrusion across cylinders – Variable compression = uneven gasket stress = accelerated failure on high-stress cylinders
  • Measurement with wrong tools – Cheap gauges = inaccurate readings = wrong liner selection = engine failure
  • Warranty claims & engine failure – Improper liner height = $15,000–$25,000 warranty liability + reputation damage

The ATC1P-2402 eliminates these risks with precision metric measurement capability. This multi-function gauge delivers accurate dial readings for liner protrusion, sled measurement, counterbore depth, and liner height verification—ensuring perfect OEM-specification geometry every time. Professional Caterpillar rebuilders achieve consistent results, zero measurement errors, and reliable engines that satisfy customers.

Multi-Function Measurement Capability

ATC1P-2402 Functions & Applications:

  • ✓ Liner Protrusion Gauge – Primary function: measure liner height above block deck
  • ✓ Dial Depth Gauge – Measure depth of counterbores, recesses, and cavities
  • ✓ Sled Gauge – Measure across block deck surfaces for flatness verification
  • ✓ Counterbore Depth Gauge – Measure depth of liner counterbore areas
  • ✓ Liner Height Gauge – Measure total liner height for consistency across all cylinders
  • ✓ Metric Dial Indicator – Precision measurement in metric units (0.01mm increments)

Why Multi-Function Matters:

    ✓ One tool for multiple measurement tasks
    ✓ Reduces tool inventory requirements
    ✓ Consistent measurement approach across rebuild
    ✓ Professional-grade accuracy for all functions
    ✓ Speeds workflow – single tool setup

ATC1P-2402 Specifications & Features

Feature Specification
SKU ATC1P-2402
Price $200.00
Weight 2 lbs (portable precision tool)
Dial Indicator Type Metric Dial Indicator
Engine Application Caterpillar Series (3406, 3408, C15, etc.)
Primary Function Liner height/protrusion measurement

Perfect Liner Height = Reliable Engines

One failed rebuild costs 75X this tool's investment.

ORDER NOW → $200

Key Benefits & Applications

  • ✅ Precision Metric Measurement
    Accurate dial indicator readings in 0.01mm increments
  • ✅ Multi-Function Capability
    Liner protrusion, depth gauge, sled gauge, counterbore depth
  • ✅ Caterpillar-Specific
    Designed for Caterpillar engine series (3406, 3408, C15, etc.)
  • ✅ OEM-Specification Compliance
    Ensures perfect liner geometry matching OEM standards
  • ✅ Professional-Grade Construction
    2 lbs precision tool rated for professional rebuild shops
  • ✅ Zero Measurement Errors
    Reliable dial readings eliminate guesswork and mistakes
  • ✅ Consistent Quality Control
    Same tool, same readings, every rebuild

Engine Rebuilders: Precision Liner Measurement Starts Here

ADD TO CART • ATC1P-2402

ROI: Professional Measurement vs. Engine Failure

Improper Liner Height Measurement

  • Failed engine rebuild: $10,000
  • Warranty replacement: $15,000
  • Reputation damage: Priceless
  • Per failed engine: $25,000+

ATC1P-2402

  • Tool investment: $200
  • Accurate measurement: Always
  • Perfect liner height: Guaranteed
  • ROI: First failed engine avoided

Professional Liner Measurement Checklist

Every Liner Rebuild – Critical Measurements

✅ Clean block deck surface
✅ Measure block deck for flatness (sled gauge)
✅ Measure counterbore depth on all cylinders
✅ Install new liners (using M20104-C press)
✅ Measure liner protrusion on all cylinders
✅ Verify protrusion uniformity across block
✅ Record all measurements for service records
✅ Compare against OEM specifications

Perfect Liner Measurement = Engine Reliability

The Liner Height Gauge Every Engine Shop Needs

BUY NOW → $200
✅ Caterpillar Engines • Metric Dial Indicator
✅ Multi-Function Measurement • Precision Accuracy
✅ Professional-Grade • Zero Measurement Errors
