CAT MBE Detroit Headbolt Torque Procedure: ATC34CAT19MM Professional Guide

Detailed headbolt torque procedure for CAT MBE Detroit using ATC34CAT19MM socket.

By Blog Admin • January 19, 2026 • Posted in Diesel Tools, Products

This 12-phase procedure uses the ATC34CAT19MM 19mm 12-point socket to torque headbolts on CAT MBE/Detroit engines. Ensures secure grip and precise torque without rounding in cramped spaces.

ATC34CAT19MM CAT MBE Detroit headbolt torque procedure step-by-step

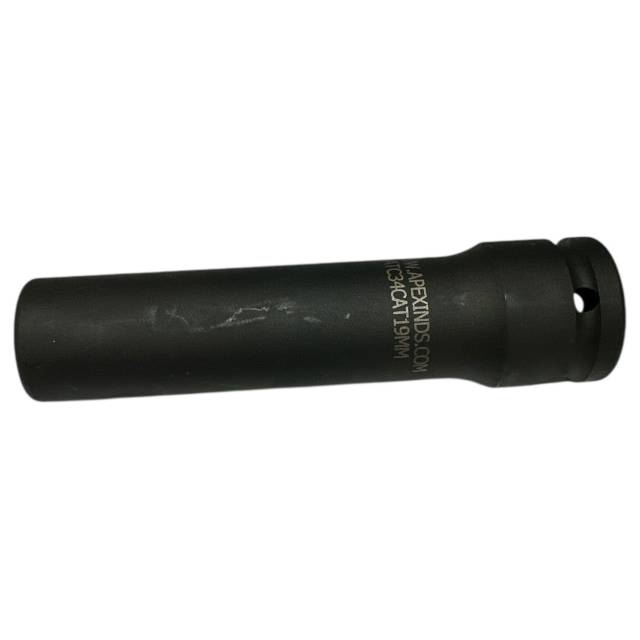

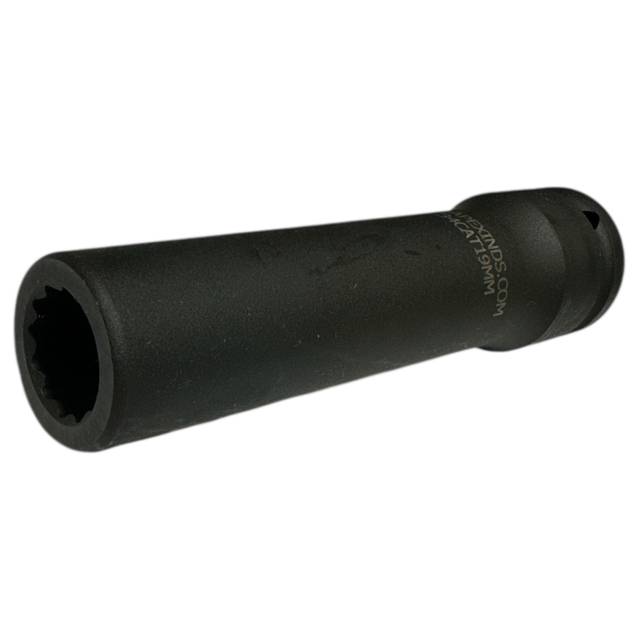

ATC34CAT19MM socket assembled for CAT diesel torque procedure

Introduction: Essential Headbolt Torque for CAT Engines

Accurate torque on CAT MBE904/906 EGR and Detroit 19mm bolts prevents warping. The ATC34CAT19MM socket provides secure 12-point engagement—vital for reliable head service.

Phase 1-3: Engine Preparation & Access

Drain coolant and remove head – Label lines
Clean bolt threads – Brush/solvent
Inspect bolts/heads – Note damage
Prepare ATC34CAT19MM socket – Verify fit
Calibrate torque wrench – Heavy-duty

Phase 4-6: Bolt Installation & Initial Torque

Install new gasket – Align holes
Position head – Guide pins
Engage socket on bolt – 12-point secure
Initial torque sequence – Per manual stages
Rotate indexing – 30° advantage
Check evenness – No gaps

Phase 7-9: Final Torque & Verification

CRITICAL: ATC34CAT19MM Torque Setup

Final torque passes – Full stages
Re-check sequence – After settling
Document torque values – Per bolt
Reinstall components – Torque all
Refill coolant/bleed – Check levels
Prime system – No air

Phase 10-12: Testing & Finalization

Start idle test – Monitor leaks
Road test load – Verify performance
Final torque inspection – After run-in
Update logs – Note tool used
