Rockwell / Meritor Air Brake Pan Overhaul: 640-195-522-2 Procedure
By Blogdashfdhd Adminvsbgfsf •
A professional 10-phase guide to maintaining and overhauling Meritor air brake pan assemblies using the 640-195-522-2 basic tool kit.
Introduction: The Critical Role of the Air Brake Pan
The air brake pan assembly is the heart of the mechanical braking action on heavy-duty axles. Proper maintenance of slack adjusters and push rods is essential for vehicle safety and preventing "brake drag."
Overhaul Phases 1-5: Disassembly & Inspection
- Vehicle Preparation: Chock wheels and release air pressure according to standard safety protocols.
- Pan Access: Remove existing hardware and inspect the pan for cracks or excessive corrosion.
- Spider Component Removal: Use the 640-195-522-2 tools to safely remove pins and spider hardware.
- Pushrod Analysis: Check pushrod length and alignment—replace if bent or scored.
- Seal & Pin Inspection: Verify the integrity of all sealing surfaces; use the kit to extract seized pins.
Overhaul Phases 6-10: Reassembly & Adjustment
- Hardware Installation: Use the precision tools to seat new spider kits and seals squarely.
- Slack Adjuster Setting: Reinstall the slack adjuster and use the kit for precise initial positioning.
- Pushrod Attachment: Connect pushrods ensuring no binding or off-angle tension.
- Final Adjustment: Perform a standard brake stroke measurement to ensure compliance.
- Operational Test: Apply air pressure and verify even application across all serviced pans.
Critical Warnings: Avoid These Brake Service Hazards
SERVICE DANGERS:
- ❌ Improper Spring Handling: Never use screwdrivers for brake springs; the tension can cause tools to become projectiles.
- ❌ Over-greasing: Excessive lubricant on brake pan seals can contaminate the friction material.
- ❌ Forcing Pins: Using a heavy hammer to seat pins can distort the pan housing.
Optimize Your Fleet's Braking Performance.

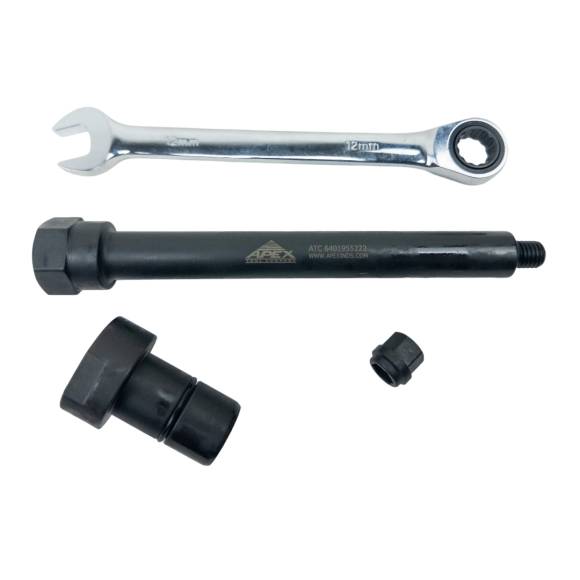

Get the Meritor Tool Kit – $300.00
