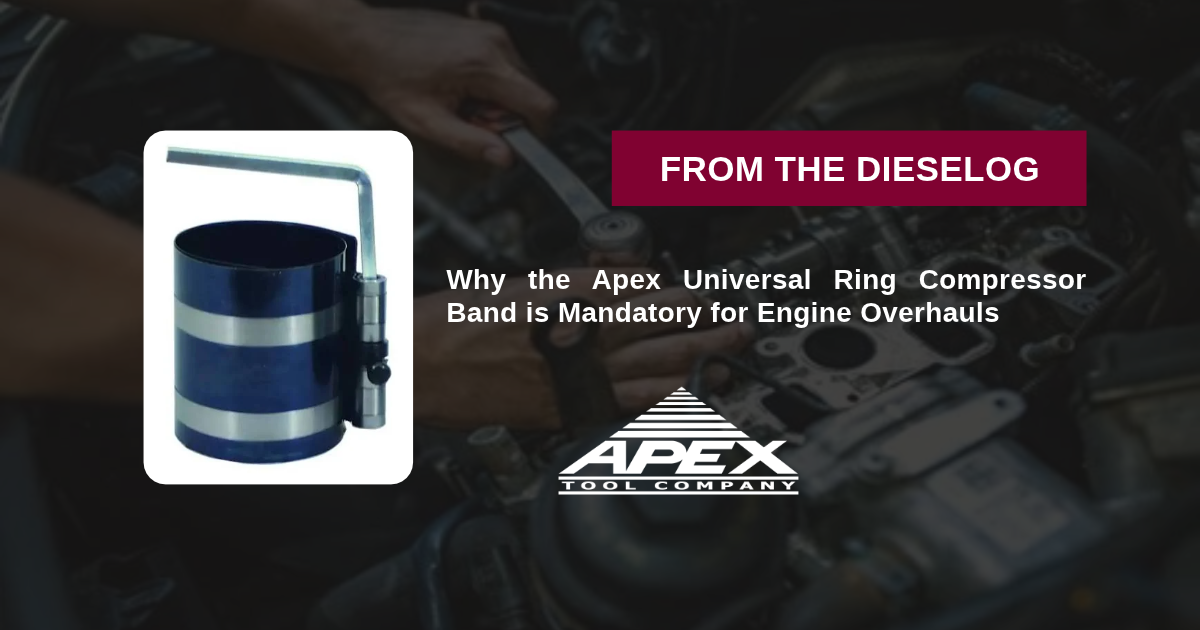

Why the Apex Universal Ring Compressor Band is Mandatory for Engine Overhauls
Prevent broken compression rings, scored cylinder walls, and engine rebuild teardowns across automotive and diesel platforms.
Installing pistons into cylinder bores on automotive, light-to-medium duty diesel, performance, or heavy-duty industrial engines? Attempting to compress piston rings using cheap single-band pliers, screwdrivers, or improper spring steel bands causes catastrophic engine assembly failures. Piston rings are delicate, precision-machined components designed to seal combustion pressures and control oil film thickness. When force is applied unevenly, rings twist, pop out of their grooves, or snag against the sharp top edge of the cylinder bore chamfer. Tapping a misaligned piston down into a bore snaps oil rings, fractures top compression rings, and deeply scores precision cylinder wall hones. A scored cylinder wall leads to instant oil consumption, compression blow-by, and mandatory engine teardowns. Engineered for professional engine builders, automotive service stalls, diesel machine shops, and fleet overhaul facilities, the Apex Universal Ring Compressor Band (ATCRNGCOMP285) features a dual-band heavy-duty tensioning mechanism accommodating piston diameters from 3 1/2″ up to 7″—delivering 360-degree uniform compression to glide pistons smoothly into cylinder bores without ring damage or bore scoring.
The Critical Physics of 360-Degree Radial Compression & Dual-Band Friction Control
Modern engine pistons utilize multi-piece ring packs consisting of thin top compression rings, scraper rings, and multi-segment oil control rings with expanders. During installation, all rings must be compressed flush into their piston lands simultaneously. Single-band compressors frequently tilt or flare at the base, allowing the lowest oil ring to expand right before entering the cylinder bore chamfer. The Apex Universal Ring Compressor Band eliminates this failure point through its two-band structural design. By distributing tension evenly across two parallel bands, the tool maintains continuous, dead-flat contact against the entire height of the piston skirt and ring pack. The friction-controlled ratcheting tension mechanism compresses rings 360 degrees radially toward the piston center pin, ensuring zero flare at the bottom edge. When the wooden hammer handle gently taps the piston crown, the rings slide smoothly across the chamfer into the cylinder bore without binding, cocking, or breaking.
- Extreme 3 1/2″ to 7″ Piston Diameter Range – Universal size adjustability fits automotive, light/medium diesel, racing, and heavy industrial engine pistons.
- Dual-Band Balanced Tension Architecture – Two heavy-duty steel bands prevent bottom-edge flaring and maintain uniform 360-degree radial ring compression.
- Eliminates Bore Scoring & Broken Rings – Keeps rings flush inside piston lands so they enter the cylinder bore chamfer smoothly without snagging.
- Quick & Secure Ratcheting Friction Drive – Enables fast, fine-tuned adjustment for different piston sizes and ring configurations.
- Compact 1.00 lbs Lightweight Shop Build – Manufactured from high-tensile spring steel designed for daily, repeatable use in engine rebuild bays.
Stop Snapping Piston Rings. Command Total Engine Rebuild Assembly Precision.
The Apex Universal Ring Compressor Band – Fits 3 1/2″ to 7″ Pistons two band is an essential capital asset for engine rebuilders, automotive repair bays, fleet maintenance facilities, and machine shops. Prevent cylinder wall scoring, protect delicate oil rings, and install pistons with complete mechanical authority using Apex tools.
1.00 lbs Universal Two-Band Precision Piston Ring Compressor. Protect Engine Overhauls.
Order the Apex Ring Compressor Band – $36.50Technical Specifications
| Technical Metric | Value / Fitment Reference Guidelines |
|---|---|
| Piston Diameter Capacity Range | 3 1/2″ to 7″ (88.9 mm to 177.8 mm) Piston Diameters |
| Band Design Architecture | Two Band (Dual-Band) Balanced Tension Spring Steel Assembly |
| Primary Operational Function | Controlled 360-degree radial piston ring compression for cylinder bore installation |
| Part / Model Reference Number | ATCRNGCOMP285 (ATCRNGCOMP205) |
| Target Applications | Automotive, Light/Medium Duty Diesel, Performance Racing, Industrial Generators |
| Construction Metallurgy | High-tensile tempered spring steel with ratcheting tension mechanism |
| Total Package Shipping Weight | 1.00 lbs (Compact essential engine rebuild assembly tool) |
