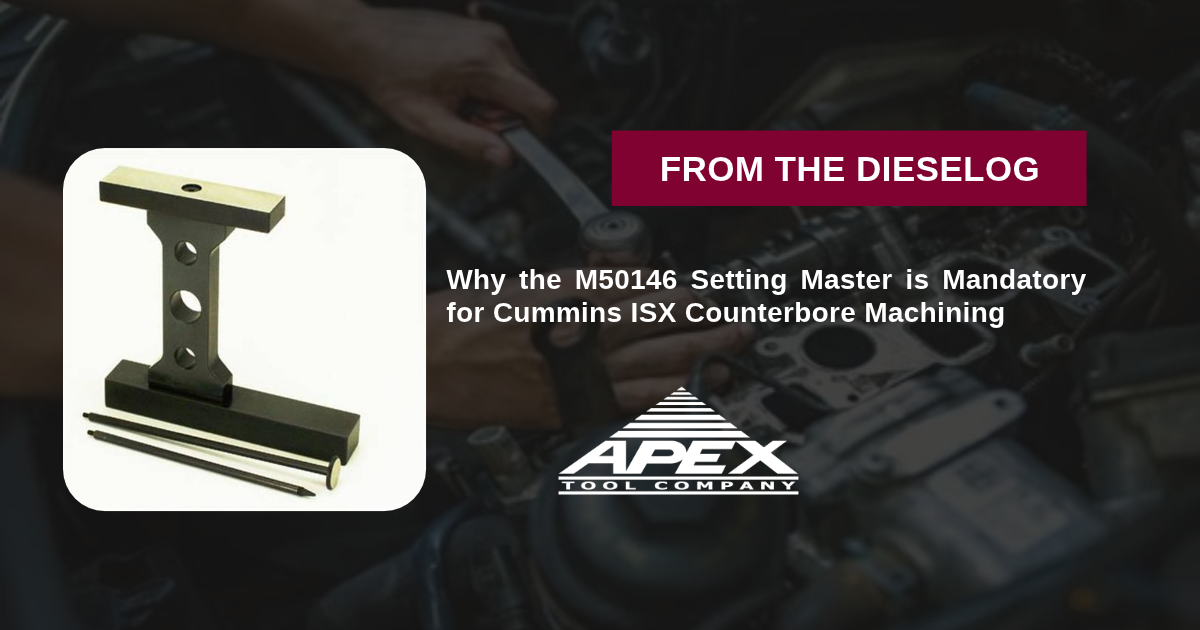

Machining upper cylinder liner counterbores on Cummins ISX or X15 heavy-duty diesel engine blocks? Zeroing dial depth gauges or cutter assemblies against uneven block decks, uncalibrated feeler blocks, or worn gauge standards causes catastrophic engine overhaul failures. High-tensile Cummins engine block decks demand extreme dimensional accuracy. If a counterbore depth gauge is zeroed with even a 0.001-inch error, the resulting counterbore cut will be too deep or too shallow across all cylinders. A counterbore cut too deep drops the cylinder liner, reducing head gasket fire ring crush, causing immediate combustion blow-by, and leaking high-pressure coolant into cylinder bores. Conversely, a shallow counterbore cut causes excessive liner protrusion, concentrating clamp loads on head deck corners and cracking cylinder liner flanges under full torque. Engineered for commercial diesel machine shops, Cummins dealership rebuild stalls, and fleet overhaul centers, the M50146 Cummins ISX Counterbore Depth Setting Master provides a 4.00-pound precision-ground hardened alloy tool steel calibration standard designed to establish an absolute zero reference—enabling machinists to calibrate dial indicators and cutter systems (such as the M50145 and M50159 cutter plates) with total mechanical accuracy before cutting block ledges.

The Critical Physics of Zero-Point Metrology & Counterbore Depth Accuracy

On heavy-duty Cummins ISX diesel engine blocks, cylinder liner protrusion must be controlled within thousandths of an inch to ensure proper head gasket fire ring compression and cylinder head deck loading. Over hundreds of thousands of miles, counterbore seats suffer fretting corrosion and ledge erosion, requiring machinists to cut fresh ledges and install precision stainless steel shims. However, before a single chip of cast iron is cut, establishing a true zero baseline is paramount. The M50146 Setting Master acts as an immovable reference standard. Precision-ground to mirror flatness on both parallel reference planes, the fixture mimics factory deck-to-ledge geometry. When placed on the M50146, the dial indicator stem or cutter adjustment foot rests on a lapped reference surface, allowing the technician to lock in true zero. This eliminates errors caused by surface scratches, carbon buildup, or thermal expansion on raw engine decks, ensuring every counterbore cut across the engine block is identical in depth.

• Targeted Cummins Engine Platform Coverage – Purpose-built specifically for depth gauge zeroing and cutter alignment on Cummins ISX and X15 engine blocks.
• Direct Integration with M50145 & M50159 Systems – Designed to work seamlessly alongside M50145 and M50159 counterbore cutter plates and depth dial assemblies.
• Precision Lapped Parallel Reference Surfaces – Hardened, heat-treated alloy steel faces ground to micro-inch tolerances for zero-error calibration.
• Protects Cylinder Liners & Head Gaskets – Prevents incorrect shim selection, uneven liner protrusion, cracked liner flanges, and blown fire rings.
• Substantial 4.00 lbs Heavy-Duty Shop Build – Solid steel construction engineered for continuous, daily use in high-volume commercial diesel machine shops.

Stop Guessing Depth Zero. Command Total Cummins ISX Machining Precision.

The M50146 Cummins ISX Counterbore Depth Setting Master is an essential calibration asset for commercial truck repair centers, Cummins dealership rebuild stalls, fleet maintenance facilities, and diesel machine shops. Prevent counterbore machining errors, verify depth indicators, and rebuild Cummins engines with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Engine Platforms	Cummins ISX and X15 Heavy-Duty Diesel Engine Blocks
Primary Operational Function	Calibration standard for zeroing liner-height and depth dial gauges prior to machining
Cutter Tool System Compatibility	Integrates with M50145 and M50159 Counterbore Cutter Plates
Part / Model Reference Number	M50146 (M 50146 / 50146)
Construction Metallurgy	Hardened, heat-treated structural alloy steel with lapped reference faces
Total Package Shipping Weight	4.00 lbs (Precision machine shop master calibration fixture)

---
