Installing wet cylinder liners into a Detroit Diesel Series 60 engine block during a major overhaul or in-frame repair? Follow this step-by-step professional workshop procedure to clean block bores, lubricate lower sealing rings, mount the M30118 liner installer bridge tool, advance the forcing screw smoothly, and verify counterbore seat contact without tearing lower seals.

Why Impact Driving Liners Causes Engine Overhaul Disasters

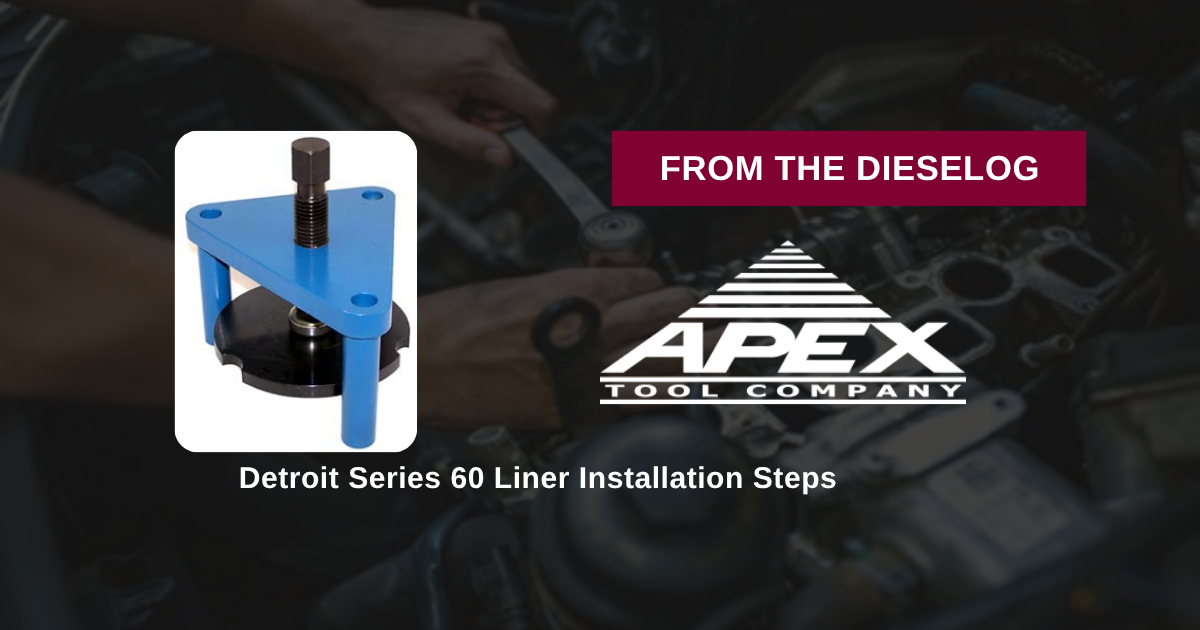

On Detroit Diesel Series 60 heavy-duty engines, cylinder liners must sit perfectly square inside block bores to maintain proper cylinder wall roundness and seal coolant within the block water jacket. Lower liner sealing rings fit tightly against machined lower block lands to isolate coolant from the oil pan. Because these rubber seals create interference friction, forcing the liner into place requires steady pressure. Technicians who attempt to drive liners down using wood blocks and brass sledges introduce severe mechanical damage. Hammer shocks cock the liner sideways inside the bore. As the tilted liner is forced downward, the sharp edge of the block chamfer acts like a shear blade, cutting off a section of the lower sealing ring. Even worse, hammer strikes can micro-fracture the top liner flange or distort the roundness of the cylinder wall. A distorted cylinder bore causes piston ring scuffing and excessive oil consumption. Utilizing the 16-pound M30118 Heavy Duty Liner Installer Tool (Kent-Moore J-35597 Equivalent) eliminates these installation hazards entirely. By anchoring the bridge plate squarely over head stud holes, the forcing screw pushes the liner straight down with smooth, linear mechanical force, allowing rubber seals to seat intact every time.

The 5-Step Detroit Series 60 Liner Installation Protocol

1. Clean Engine Block Bores & Counterbores: Thoroughly clean upper counterbore seats and lower sealing ring lands inside the block. Wire-brush scale and wipe clean with solvent to ensure no grit is trapped behind lower seals.
2. Install & Lubricate Lower Sealing Rings: Install fresh OEM Detroit Diesel lower sealing rings into the liner grooves. Coat the seals and lower block chamfers liberally with vegetable soap or approved rubber assembly lubricant.
3. Lower Cylinder Liner & Position M30118 Bridge Tool: Lower the cylinder liner carefully into the block bore until lower seals contact the upper block chamfer. Mount the M30118 bridge plate over adjacent head stud locations and anchor it securely to the deck face.
4. Advance Forcing Screw to Press Liner Home: Center the M30118 press plate squarely on the top rim of the cylinder liner. Turn the central forcing screw clockwise using a hand wrench to press the liner down smoothly until the flange seats firmly against the counterbore ledge.
5. Remove Tool & Verify Clamped Protrusion: Unbolt and remove the M30118 liner installer. Install hold-down bolts and washers to clamp the liner, then measure cylinder liner protrusion using a dial depth gauge across four quadrants to confirm OEM specification before installing the head gasket.
