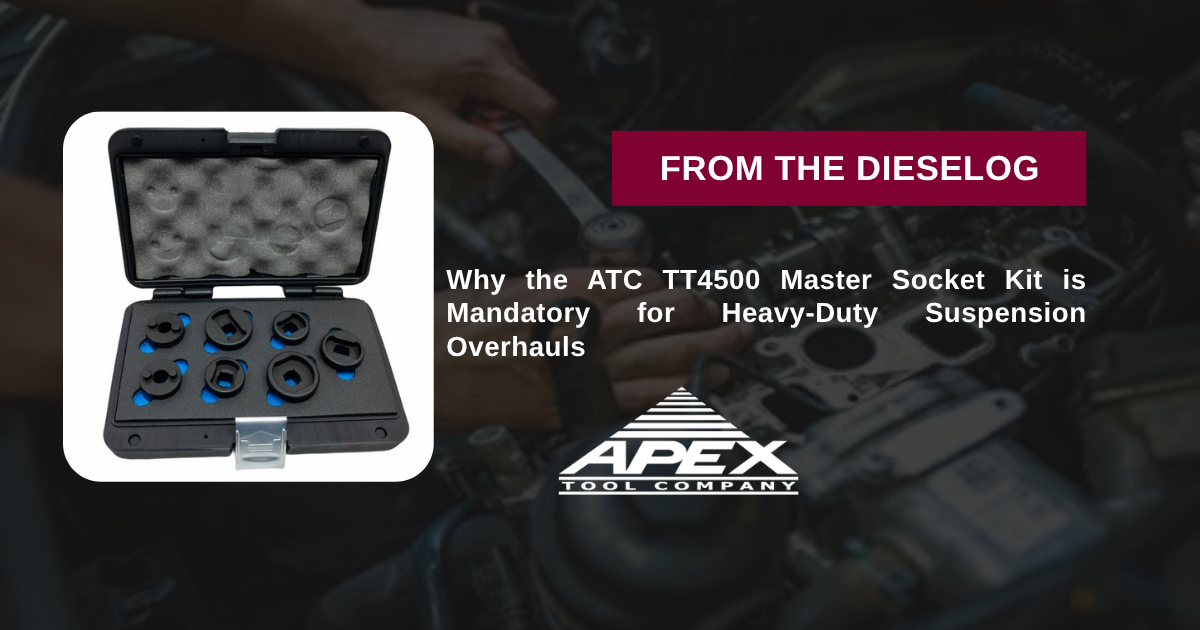

Why the ATC TT4500 Master Socket Kit is Mandatory for Heavy-Duty Suspension Overhauls
Prevent rounded pin heads, cracked hanger castings, and suspension overhaul delays across Class 8 mixed truck fleets.
Servicing or replacing threaded leaf spring hanger pins on Class 8 Volvo, Mack, PACCAR (Kenworth/Peterbilt), Western Star, or Navistar International heavy-duty trucks? Attempting to extract corroded, seized, or high-torque suspension spring pins using pipe wrenches, locking pliers, chisels, or ill-fitting generic sockets causes catastrophic suspension overhaul delays. Threaded leaf spring pins feature specialized double-D or slotted drive profiles designed to handle massive chassis loads. When technicians use improvised tools, high breaking torque slips off the narrow pin flats, rounding the heat-treated drive head instantly. A rounded, frozen spring pin locks inside the hanger casting—requiring hours of dangerous torch heating, air gouging, or complete hanger bracket replacement. Engineered for commercial diesel mechanics, heavy truck suspension specialists, and fleet repair facilities, the ATC TT4500 Leaf Spring Pin Socket Master Set provides a 3.00-pound 7-piece master collection of precision-broached alloy steel sockets matching OEM geometry (including Volvo 9996791 and Tiger Tool TG15100-TG15106 equivalents)—delivering 100% flat engagement and zero-slip rotational force to remove and torque stubborn spring pins safely.
The Critical Physics of Threaded Pin Torque & Cross-Brand Drive Profile Tolerances
Class 8 commercial truck front and rear leaf spring suspensions rely on threaded spring pins to secure spring eyes inside frame hanger brackets while allowing controlled articulation. Because these pins are directly exposed to road salt, moisture, and road vibration, rust-jacking seizes the pin threads tight against the cast-iron hanger bore. Breaking these pins loose requires hundreds of foot-pounds of rotational torque applied purely to the pin's drive head. If the socket profile does not match the pin head dimensions exactly, radial force concentrates on the extreme corners of the head rather than the flat drive faces, shearing the tool or rounding the pin head. The ATC TT4500 Master Set completely eliminates drive profile slippage. Containing seven distinct socket geometries—including specialized Volvo/Mack sockets and five specific PACCAR/International double-D dimensions—each socket features a deep internal recess to pass over extended pin threads. Made from impact-grade structural alloy steel, these 1/2" drive sockets lock firmly onto the pin flats, distributing extreme breaker bar torque evenly to break road-corroded pins free without deforming the pin body or damaging frame hangers.
- Comprehensive 7-Piece Master Fleet Coverage – Serves Volvo, Mack, Western Star, PACCAR (Kenworth/Peterbilt), and Navistar International leaf spring pins.
- Direct Tiger Tool & Volvo OEM Cross Reference – Includes direct replacements for Volvo #**9996791** and Tiger Tool numbers **TG15100, TG15105, TG15102, TG15104, TG15106, TG15100, and TG15101** (ATC TT4500).
- Precision Broached Non-Rounding Socket Geometry – Form-fitted internal profiles contact 100% of pin drive flats to prevent corner rounding under extreme breakaway torque.
- Standard 1/2" Square Drive Interface – Integrates directly with 1/2" drive heavy-duty impact wrenches, torque wrenches, and breaker bars.
- Substantial 3.00 lbs Heavy-Duty Shop Build – Precision-machined from heat-treated alloy tool steel engineered for continuous daily use in commercial suspension repair bays.
Stop Rounding Spring Pins. Command Total Heavy Truck Suspension Repair Precision.
The ATC TT4500 Leaf Spring Pin Socket Master Set – Volvo, Mack, Paccar & International is an essential capital asset for commercial repair centers, fleet maintenance depots, alignment specialists, and dealership service stalls. Prevent hardware rounding, speed up suspension overhauls, and service threaded leaf spring pins with complete mechanical authority using Apex tools.
3.00 lbs Precision 7-Piece Heavy-Duty Leaf Spring Pin Master Socket Kit. Protect Fleet Suspension Repairs.
Order the ATC TT4500 Kit – $250.00Technical Specifications & Master Set Socket Breakdown
| Included Socket Profile | Direct OEM / Tiger Tool Cross Reference & Application Guidelines |
|---|---|
| Volvo / Mack Leaf Spring Pin Socket | Direct replacement for Volvo OEM part # 9996791 & Tiger Tool TG 15103 |
| Western Star Leaf Spring Pin Socket (1/2" Drive) | Direct replacement for Tiger Tool TG 15105 (Western Star Spring Pins) |
| PACCAR / International Socket (1.150" x 0.760") | 1/2" Drive — Direct replacement for Tiger Tool TG 15102 |
| PACCAR / International Socket (1.460" x 1.260") | 1/2" Drive — Direct replacement for Tiger Tool TG 15104 |
| PACCAR / International Socket (1.265" x 0.635") | 1/2" Drive — Direct replacement for Tiger Tool TG 15106 |
| PACCAR / International Socket (1.530" x 0.653") | 1/2" Drive — Direct replacement for Tiger Tool TG 15100 |
| PACCAR / International Socket (1.097" x 0.647") | 1/2" Drive — Direct replacement for Tiger Tool TG 15101 |
| Total Kit Weight & Drive Size | 3.00 lbs Shipping Weight — Standard 1/2" Square Drive Interface Across All Sockets |
