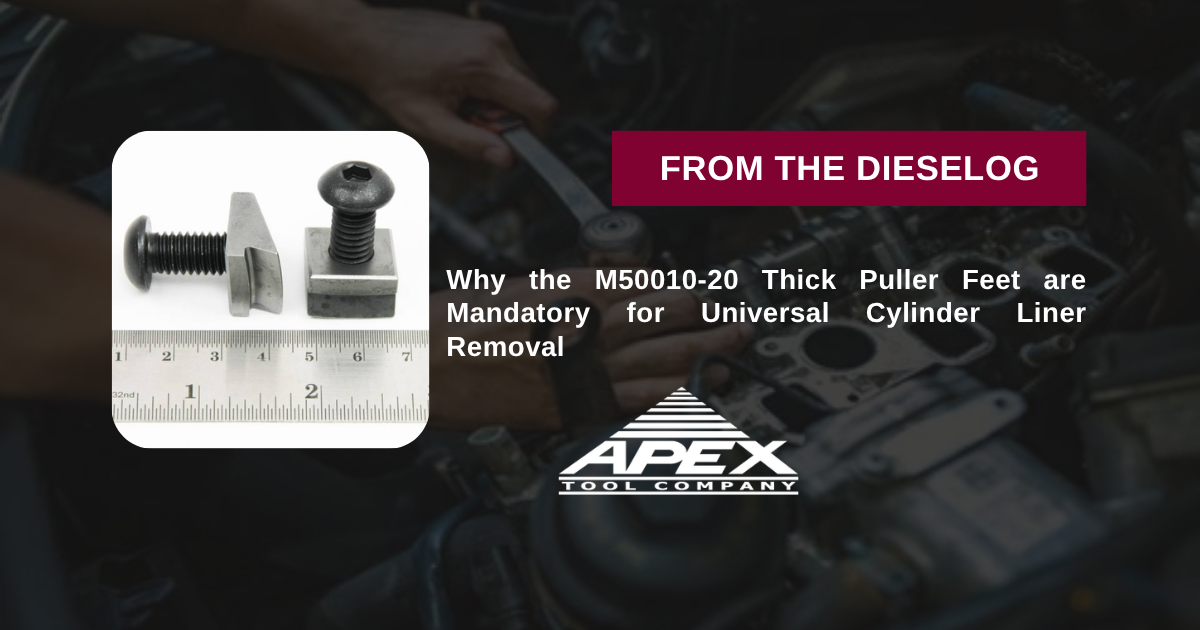

Extracting seized or carbon-bound wet cylinder liners during heavy-duty diesel engine overhauls? Attempting to pull stubborn cylinder liners using worn, rounded, or undersized puller feet causes catastrophic engine block deck failures. Under extreme vertical pull force, worn or thin puller fingers lose positive engagement against the bottom lip of the cylinder liner flange. When feet slip under load, the puller crossbar cocks sideways, slamming steel edges into precision cylinder wall counterbores or gouging internal engine block deck surfaces. A slipping puller foot can shear off the bottom edge of the liner flange entirely—leaving a fractured, frozen liner casing trapped inside the block deck that requires hours of destructive grinding and welding to extract. Engineered for professional commercial diesel mechanics, fleet service stalls, and engine rebuild facilities as a direct replacement component for Apex and Kent-Moore universal liner pullers (M50010 series), the M50010-20 Thick Replacement Feet (Set of 2 with screws) provide a 1.00-pound pair of precision-machined, high-strength alloy steel gripping fingers—delivering maximum flange contact area and slip-free mechanical leverage to pull wet cylinder liners cleanly without block deck damage.

The Critical Physics of Flange Engagement Surface Area & Axial Tensile Load Distribution

Wet cylinder liners in heavy-duty commercial diesel engines are held firmly in place by lower rubber crevice seals, O-rings, and years of accumulated carbon crust around the upper counterbore seat. Overcoming this static friction requires thousands of pounds of upward axial force generated by the main forcing screw of a universal liner puller. The success of this extraction relies entirely on the mechanical interface between the puller feet (fingers) and the bottom ledge of the cylinder liner. Thinner or worn feet concentrate immense pressure on a microscopic contact point, deforming the soft metal of the liner or flexing outward under heavy torque. The M50010-20 Thick Replacement Feet completely eliminate foot deflection and slippage. Precision-machined with an enlarged, heavy-duty contact profile, these thick fingers slide under the liner bottom lip to provide a broad, 100% square mechanical shoulder. By distributing tensile forces evenly across the liner rim, the M50010-20 feet allow the puller assembly to apply pure, vertical extraction force—drawing even the most stubborn, carbon-locked liners straight up out of the engine block without cocking, chatter, or bore gouging.

• Universal Tool Fitment Compatibility – Engineered specifically for Apex and Kent-Moore universal liner puller tool assemblies (M50010 series).
• Heavy-Duty Thick Finger Architecture – Thicker engagement profile provides increased mechanical strength and contact area for stubborn liner extractions.
• Prevents Tool Slippage & Block Deck Gouging – Locks securely under the cylinder liner flange to eliminate foot pop-out, off-axis pulling, and counterbore damage.
• Includes Precision Mounting Fasteners – Comes complete as a set of 2 thick replacement feet along with matching mounting screws for quick shop swap-outs.
• High-Tensile Alloy Steel Construction – Heat-treated alloy steel built for continuous daily use under extreme mechanical pull forces in diesel repair stalls.

Stop Slipping Pullers. Command Total Cylinder Liner Extraction Precision.

The M50010-20 Thick Set of 2 Replacement Feet (Finger) For Universal Liner Puller is an essential service component for commercial truck repair centers, dealership service bays, fleet maintenance depots, and diesel machine shops. Prevent liner flange shearing, protect engine block bores, and extract wet cylinder liners with complete mechanical authority using Apex tools.

Technical Specifications

Technical Metric	Value / Fitment Reference Guidelines
Target Puller Compatibility	Apex & Kent-Moore Universal Cylinder Liner Puller Systems (M50010 Series)
Primary Operational Function	Positive flange engagement and extraction of wet cylinder liners in diesel engine blocks
Package Contents	Set of 2 Thick Replacement Feet (Fingers) + Heavy-Duty Attaching Screws
Part / Model Reference Number	M50010-20 (M5001020 / 50010-20)
Construction Metallurgy	High-tensile precision-machined heat-treated alloy tool steel
Total Package Shipping Weight	1.00 lb (Compact, heavy-duty specialty liner puller replacement part set)

---
