Connecting OEM diagnostic software to modern Class 8 commercial vehicles, vocational trucks, and heavy equipment? Attempting to perform active fault tracing, live parameter monitoring, or critical ECU flashing over unstable wireless networks or legacy VCIs causes catastrophic vehicle downtime and corrupted module software. Modern heavy-duty engine, transmission, and braking controllers utilize high-speed data buses that demand uninterrupted data throughput. A wireless signal drop or packet delay during an electronic control module (ECM) firmware reflash can permanently "brick" the control unit, locking out engine starts and requiring costly module replacement. Furthermore, older vehicle communication interfaces (VCIs) lack support for modern high-speed protocol architectures like CAN FD (Flexible Data-Rate) and DoIP (Diagnostics over Internet Protocol), locking technicians out of 2024+ engine and chassis systems. Engineered for professional commercial diesel technicians, fleet maintenance depots, alignment/electrical specialists, and OEM dealership service stalls, the NEXIQ 121054 USB-Link 3 Wired Edition (NQ121054) provides a 5.00-pound ruggedized Vehicle Communication Interface (VCI) equipped with a latching USB 2.0 cable connection, full backward/forward protocol coverage, and universal RP1210/J2534 API compliance—delivering 100% stable, zero-latency data transmission for deep-level OEM diagnostics and flash programming.

The Critical Physics of Bus Protocol Throughput & Latching Wired Connection Stability

Modern commercial vehicle electronic architectures have evolved beyond traditional 250k/500k J1939 CAN networks. Next-generation diesel engines and safety control systems transmit dense data packets via CAN FD at speeds up to 1M b/s and utilize ethernet-based DoIP for massive software update payloads. To establish reliable communication between Windows diagnostic laptops and the vehicle network, a VCI must accurately perform auto-baud detection while managing multi-channel protocol bridging. The NEXIQ 121054 USB-Link 3 Wired Edition is built specifically to handle high-bandwidth bus data without packet buffering errors or latency spikes. Designed for environments with heavy electromagnetic interference (EMI) or severe RF signal congestion—such as busy repair bays, metal fabrication shops, or remote job sites—the 121054 utilizes a heavy-duty latching USB cable to ensure physical retention. This eliminates accidental disconnections during active DPF regenerations, cylinder cutout tests, or critical ECM reflashing, providing total data integrity from the laptop to the truck's diagnostic port.

• Comprehensive Next-Gen Protocol Coverage – Full support for CAN FD (250K, 500K, 1M b/s auto-baud), DoIP, J1939, J1708, SWCAN, FTCAN, J1850 VPW, ISO 9141 / KWP2000, and legacy ALDL/ATEC.
• Direct OEM Diagnostic Software Compatibility – Fully compliant with Windows RP1210 a/b/c/d standards and partial J2534 for seamless operation with Cummins Insite, Detroit DDDL, CAT ET, PACCAR DAVIE, Volvo PTT, and Bendix ACom.
• Zero-Interference Latching USB Connection – Wired-only architecture featuring a 15-foot latching USB cable eliminates wireless dropouts, EMI interference, and connection drops during ECM flashing.

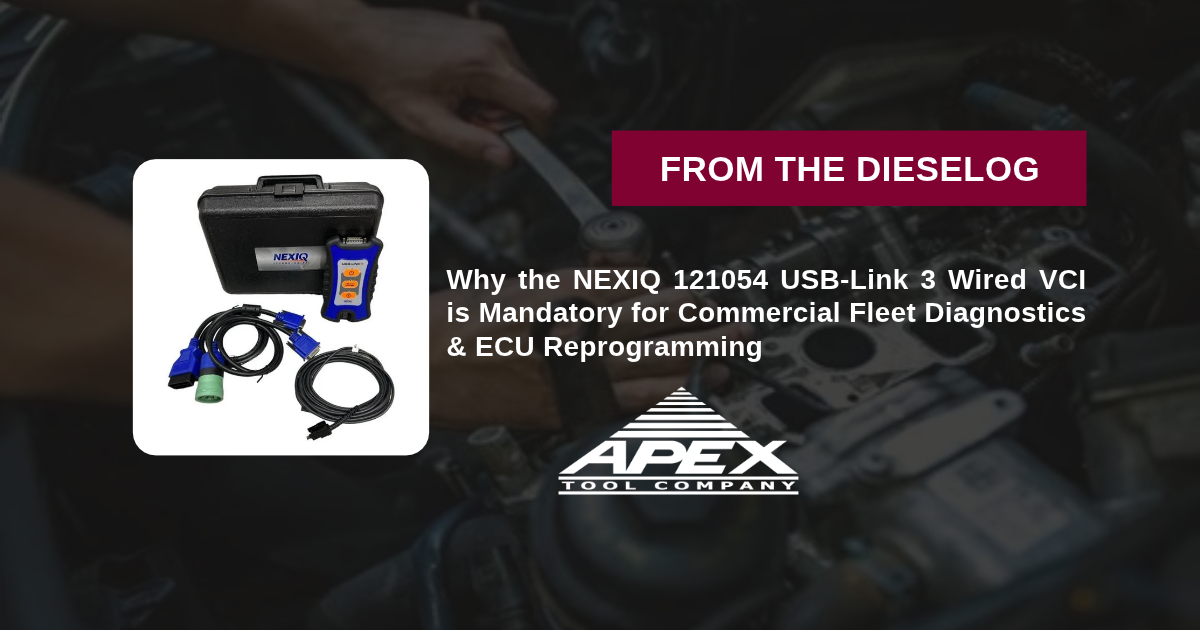

• Complete Cable & Accessory Bundle Included – Ships complete with the USB-Link 3 wired VCI, 9-Pin Deutsch cable (493128), 16-Pin OBDII cable (493113), latching USB cable, Quick Start Guide, and rugged carrying case.
• Full Cable Backward Compatibility – Reuses all existing NEXIQ USB-Link 2 adapter cables, allowing fleets to seamlessly upgrade VCIs without re-purchasing harness adapters.

Stop Risking Corrupted ECM Flashes. Command Total Commercial Vehicle Diagnostic Authority.

The NEXIQ 121054 Usb Link 3 Wired Edition Diagnostic Heavy Duty Vehicle Interface VCI NQ121054 is an essential capital asset for commercial truck repair centers, fleet maintenance depots, mobile service technicians, and OEM dealership bays. Prevent software flashing failures, diagnose CAN FD and DoIP networks, and service heavy-duty vehicle electronics with complete authority using Apex tools.

Technical Specifications

Technical Metric	Value / Capability Guidelines
Interface Connectivity Type	Direct Wired USB 2.0 (High-Speed Vehicle-to-PC Connectivity with Latching Cable)
Supported Vehicle Protocols	CAN FD / J1939 FD / ISO15765 FD (250K, 500K, 1M b/s), DoIP, SWCAN, FTCAN, J1708, J1850 VPW, ISO 9141/KWP2000, ALDL, ATEC
API & Driver Standards	RP1210 a/b/c/d API, J2534 (2004 draft), J2534-1 partial implementation (Commercial Vehicle Focused)
Supported Host Operating Systems	Windows 10, Windows 11, Android™, iOS
Included Adapter Cables	493128 9-Pin Deutsch Cable (1m), 493113 16-Pin OBDII Cable (1m), 15' Latching USB Cable
Part / Model Reference Number	NEXIQ 121054 (NQ121054 / 121054)
Cable Harness Cross-Compatibility	100% Compatible with all NEXIQ USB-Link 2 adapter cables
Total Package Shipping Weight	5.00 lbs (Complete diagnostic VCI kit in plastic carrying case)

---
