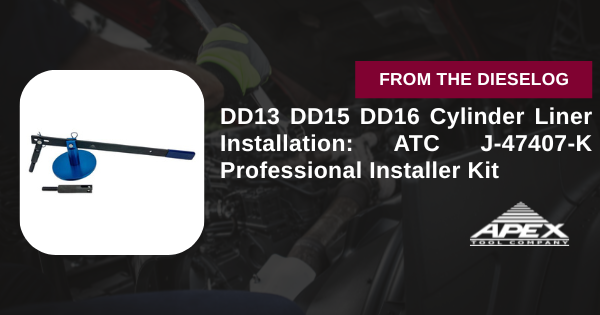

DD13 DD15 DD16 Cylinder Liner Installation: ATC J-47407-K Professional Installer Kit
Professional cylinder liner installer for DD13 DD15 DD16 heavy-duty engines.
The ATC J-47407-K Cylinder Liner Installer Kit revolutionizes liner installation on DD13, DD15, and DD16 heavy-duty engines. As a direct replacement for J-47074-K, this precision tool ensures proper seating, preventing damage and maintaining peak performance for Detroit Diesel fleets.
The Critical Risks of Improper Cylinder Liner Installation in HDE Engines
Detroit Diesel DD13, DD15, and DD16 engines operate under extreme pressures, where misinstalled cylinder liners lead to scoring, overheating, and catastrophic failure. Without specialized tools, liners can misalign or crack, escalating repair costs.
- Liner bore scoring – Misalignment scratches surfaces, requiring $1,200–$3,000 in honing or sleeving
- Overheating failures – Improper seating causes hot spots, leading to piston seizure ($2,500–$6,000)
- Coolant contamination – Cracked liners mix fluids, necessitating full teardown ($4,000–$8,000)
- Extended downtime – Manual methods take 2–4 hours per liner, costing $300–$700/hour in fleet losses
- Engine block damage – Forced installation warps bores, totaling $5,000–$10,000 block replacements
- Compliance risks – Failed installs void warranties, adding $1,000+ in fines
What is the ATC J-47407-K Cylinder Liner Installer Kit?
The ATC J-47407-K DD13 DD15 DD16 HDE Cylinder Liner Installer 47407 is a precision kit for seating cylinder liners in Detroit Diesel heavy-duty engines. As a replacement for J-47074-K, it features engineered components for controlled, damage-free installation, ensuring OEM tolerances.
Designed for professional DD service centers, the ATC J-47407-K reduces installation time by 60%, prevents costly errors, and restores engine reliability for demanding applications.
Complete Kit Specifications & DD Engine Compatibility
Compatible Engines: Detroit Diesel DD13, DD15, DD16 HDE
Kit Functions: Cylinder liner seating and installation
Material Construction: High-strength components for precision use
Replacement For: J-47074-K (direct equivalent)
Application: Heavy-duty engine rebuilds and overhauls
Shipping Weight: 9.00 lbs (complete kit)
Professional Features & Engine Rebuild Benefits
✓ Precision Seating
Ensures even liner placement, preventing scoring and $1,200+ repairs.
✓ Damage Prevention
Controlled force avoids cracks, saving $5,000+ on blocks.
✓ J-47074-K Equivalent
Matches OEM specs for compliance and reliability.
✓ Time Efficiency
60% faster than manual, reducing labor downtime.
✓ Multi-Engine Fit
Works on DD13/15/16 for versatile fleet use.
✓ Durable Build
High-strength for 1,000+ installations in pro shops.
Economic Impact: Cylinder Liner Installation ROI
When DD Technicians Choose ATC J-47407-K
- DD13 cylinder liner installations
- DD15 engine rebuilds
- DD16 HDE overhauls
- Preventive liner maintenance
- J-47074-K replacements
- Heavy-duty diesel shops
- Precision bore seating
Install Liners Precisely. Protect DD Engines. Avoid Overhauls.
Get ATC J-47407-K – $280.00Why Professional Shops Trust ATC J-47407-K
DD technicians trust the ATC J-47407-K for its J-47074-K equivalence, precision seating, and ability to avoid $12,700–$27,000 in damages per failure. It offers safe installation, faster rebuilds, and reliability that pros demand.
From routine overhauls to fleet maintenance, this kit keeps DD engines performing at peak.
