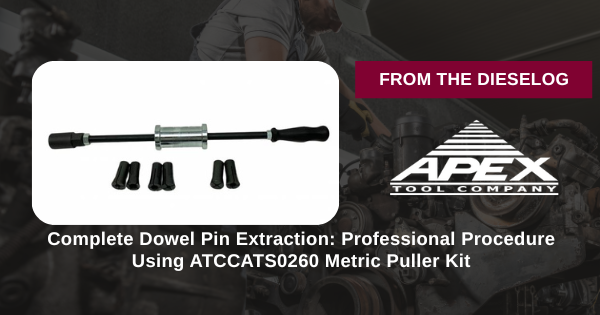

Complete Dowel Pin Extraction: Professional Procedure Using ATCCATS0260 Metric Puller Kit

Dowel pin extraction on engine blocks, cylinder heads, crankshafts, and machinery assemblies requires proper technique and the right equipment. This complete workflow guide covers the ATCCATS0260 Metric Dowel Pin Puller Kit (6-16mm) for professional engine and machinery service. From pin identification through safe extraction and component verification, follow these steps for damage-free pin removal every time—protecting expensive components and maintaining shop profitability.

Phase 1: Pin Identification & Assessment

1. Locate dowel pin on component – Identify pin location on engine block, head, crankshaft, or assembly.
2. Measure pin diameter – Use calipers to determine metric size (6mm, 8mm, 10mm, 12mm, 14mm, or 16mm).
3. Assess pin condition – Check for corrosion, damage, or seizing; this determines extraction technique.
4. Inspect surrounding area – Verify clearance for puller operation; ensure no interference with other components.
5. Note pin depth – Determine how far pin protrudes; affects extraction strategy.
6. Prepare work area – Clear space around pin; gather ATCCATS0260 kit and collets.

Phase 2: ATCCATS0260 Setup & Collet Selection

1. Inspect puller components – Check slide hammer shaft, collets, and locking mechanism for damage.
2. Select correct collet size – Match collet to dowel pin diameter (6, 8, 10, 12, 14, or 16mm).
3. Clean collet before use – Remove any oil, debris, or corrosion that could affect grip.
4. Install collet on puller shaft – Thread collet onto main shaft per kit instructions.
5. Position collet over dowel pin – Align collet with pin center; verify concentric position.
6. Check clearance around pin – Ensure puller body doesn't contact surrounding components.

Phase 3: Collet Locking & Engagement

1. Align collet precisely over pin – Center collet on pin to prevent tilting or cocking.
2. Apply downward pressure on puller – Push down on slide hammer/handle to engage collet.
3. Feel collet locking into pin – Downward motion locks collet jaws around pin circumference.
4. Verify solid grip – Gently attempt to twist collet; it should not rotate on pin if properly locked.
5. Confirm complete engagement – Collet must grip pin firmly to prevent slipping during extraction.
6. Position for extraction – Align puller vertically or at appropriate angle for pin removal.

Phase 4: Controlled Dowel Pin Extraction

1. Prepare for extraction stroke – Ensure puller is positioned securely; kit should not shift during pull.
2. Slide hammer upward with controlled force – Use smooth, steady pulling motion (not jerking).
3. Monitor pin movement – Watch for pin beginning to extract; it should move smoothly upward.
4. Apply consistent pressure – Maintain steady pull; avoid sudden jerks that could damage collet or pin.
5. For seized pins, apply penetrating oil – If pin resists extraction, stop and apply penetrating oil; wait 15-30 minutes.
6. Resume extraction on seized pins – After soaking, reattempt with gentle, controlled pressure.
7. Continue until pin fully extracts – Extract pin completely; it should separate cleanly from bore.

Phase 5: Pin Removal & Component Inspection

1. Unscrew collet head or tap to release – Remove collet from extracted pin per kit instructions.
2. Separate pin from collet – Remove pin carefully; inspect for damage or breakage.
3. Inspect pin bore in component – Check for damage, scoring, or enlarged diameter.
4. Clean bore thoroughly – Remove any pin fragments, corrosion, or debris.
5. Measure bore diameter – Verify bore is not enlarged; compare to OEM specifications.
6. Inspect surrounding surfaces – Check for scratches or damage caused during extraction.
7. Document condition – Record pin condition and any bore damage for service records.
8. Proceed with new pin installation – Follow OEM procedure for installing replacement pin.
