Professional Injector Cup Removal: Complete Volvo & Mack Workflow Using ATC88800196 Kit

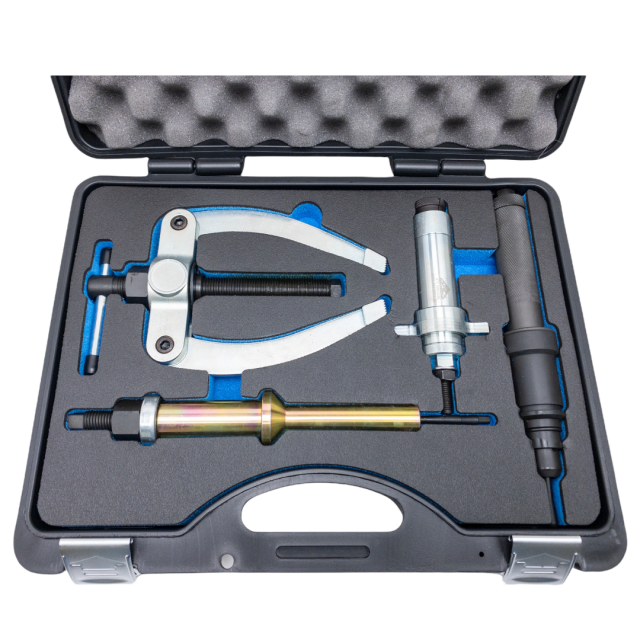

Injector cup removal on Volvo D11, D13, D16 and Mack MP7/MP8/MP10 engines requires precision and proper tooling. This complete workflow guide covers the ATC88800196 Injector Nozzle Cup Sleeve & Tube Remover & Installer Kit for professional heavy-duty diesel shops. From cup identification through extraction and reinstallation, follow these steps for damage-free service every time—no cylinder head removal required when used correctly.

Phase 1: Pre-Removal Inspection & Preparation

1. Identify injector cup type – Visual inspection or documentation review.
2. Verify cup material – Brass (210-98621, 318-3368, 85104134, 85124276) or stainless (21401136, 85137065).
3. Select correct adapter – Copper for brass cups, stainless for harder applications.
4. Clean injector bore area – Remove carbon, sludge, and debris from cup seating surface.
5. Inspect bore condition – Check for cracks, damage, or previous extraction scarring.
6. Prepare extraction area – Ensure adequate space for tool leverage and extraction force.

Phase 2: ATC88800196 Setup & Adapter Installation

1. Select correct adapter – Based on cup material (brass or stainless).
2. Install adapter on remover base – Ensure proper seating and alignment with extractor threads.
3. Verify interference fit – Adapter must grip cup firmly without rocking.
4. Position remover on injector cup – Align tool axis with cup centerline (critical for bore protection).
5. Check clearance – Ensure no interference with adjacent components or cylinder head.
6. Pre-tighten adapter finger-tight – Do not over-tighten before extraction begins.

Phase 3: Injector Cup Extraction Procedure

1. Apply steady extraction force – Use torque wrench or breaker bar with controlled pressure.
2. Increase force gradually – Avoid sudden jerking that could damage bore.
3. Monitor cup movement – Cup should extract smoothly and straightly.
4. Stop if excessive resistance – Reapply penetrating oil and wait 15-30 minutes.
5. Continue extraction – Apply steady force until cup is fully removed.
6. Remove adapter from cup – Separate tool from extracted cup carefully.

Phase 4: Bore Inspection & Preparation for Reinstallation

1. Inspect bore thoroughly – Check for damage, scoring, or debris left behind.
2. Clean bore surface – Use soft brass brush or cloth; do not use steel wool (bore damage risk).
3. Remove old sealant residue – Clean all traces of old cup seat to ensure new cup seating.
4. Verify bore roundness – Use bore gauge if available; compare to OEM specifications.
5. Check bore depth – Measure to ensure cup will seat at correct height.
6. Document bore condition – Photo record for quality assurance and warranty.

Phase 5: Injector Cup Reinstallation

1. Select new or refurbished cup – Verify material type (brass or stainless) per OEM.
2. Clean new cup – Remove any shipping debris or factory residue.
3. Install cup using correct adapter – Use ATC88800196 installer (copper or stainless).
4. Apply OEM-spec sealant – Follow manufacturer recommendations for cup seat sealing.
5. Press cup to correct depth – Use steady pressure; verify proper seating.
6. Verify cup alignment – Ensure cup is installed square (not cocked or tilted).
7. Allow sealant cure time – Follow OEM cure specifications before engine startup.
