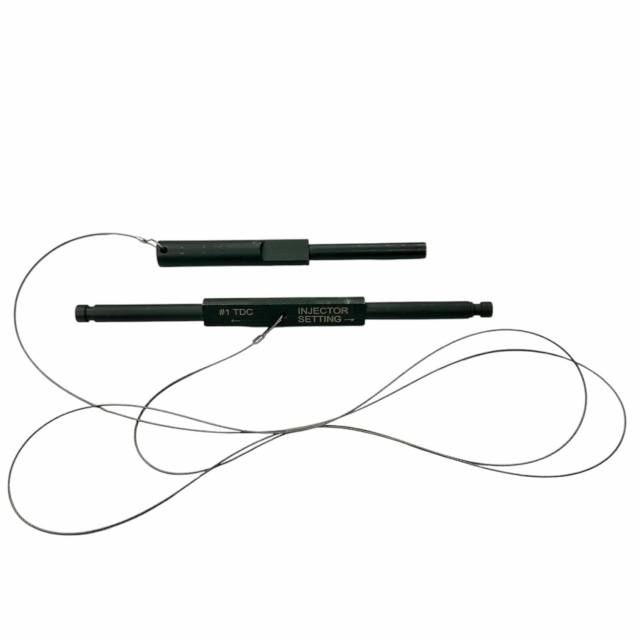

The JDG10246A Cam Timing Pin is a precision service tool designed to lock the engine at top dead center (TDC) on select John Deere diesel engines. This tool provides a positive mechanical reference point for crankshaft and camshaft positioning during timing and service procedures.
Accurate engine timing is critical for proper synchronization between the crankshaft, camshaft, and fuel system. The JDG10246A is inserted into the designated timing port and engages with the flywheel or crankshaft indexing feature, ensuring the engine is held securely at TDC.
This eliminates the need to rely solely on visual timing marks and helps prevent engine movement during service operations.
Common procedures requiring this tool include:
- Camshaft timing and alignment
- Injector timing and setup
- Valve train adjustment
- Engine assembly and reassembly
Key Features & Benefits
- Designed for John Deere diesel engine timing applications
- Locks engine precisely at top dead center (TDC)
- Provides accurate crankshaft positioning reference
- Prevents engine rotation during service
- Improves timing accuracy and repeatability
- Simple and reliable mechanical engagement
- Durable construction for professional use
Typical Applications
- Engine timing and synchronization
- Camshaft and crankshaft alignment
- Injector timing procedures
- Valve train adjustments
- Engine rebuild and assembly
Why It Matters
Precise TDC positioning is essential for accurate engine timing. Improper positioning can lead to:
- Incorrect timing setup
- Poor engine performance
- Increased wear or potential engine damage
The JDG10246A ensures the engine is locked in the correct position, allowing technicians to perform timing procedures with confidence and accuracy.
