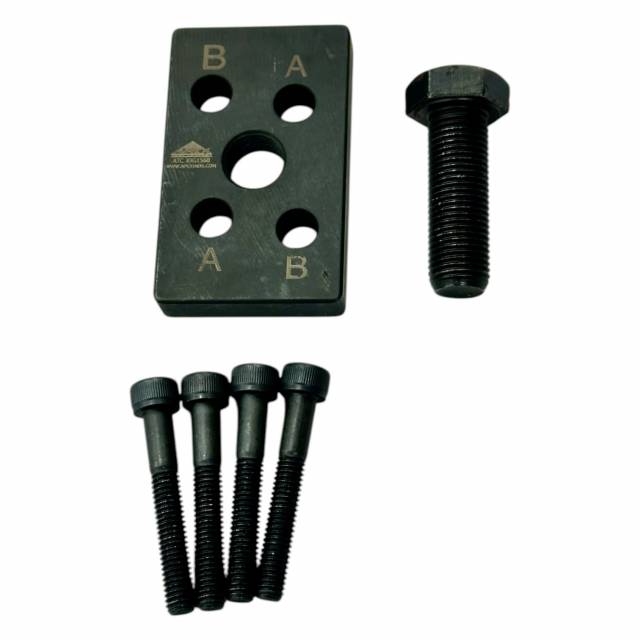

The JDG1560 Injection Pump Drive Gear Puller Plate is a precision OEM-reference service tool designed for the safe and accurate removal of injection pump drive gears on John Deere 6059 and 6068 diesel engines equipped with DB2, DB4, and DE10 fuel injection pumps. This specialized puller plate is engineered to interface directly with the drive gear and pump mounting configuration, allowing controlled gear separation without damaging critical timing components.
Injection pump drive gears are often press-fit or tightly seated on tapered shafts, making removal difficult without the proper tooling. The JDG1560 provides a stable mounting surface for puller bolts or forcing screws, enabling even distribution of force during gear removal. This prevents gear distortion, protects pump shafts, and maintains the integrity of timing components.
By eliminating the need for prying or impact methods, the JDG1560 ensures the injection system remains in proper condition for reinstallation and retiming. It is an essential tool during injection pump service, timing adjustments, gear train access, or complete engine overhaul procedures.
Constructed from high-strength, precision-machined materials, this puller plate is built for durability and repeatable performance in professional diesel repair environments.
Key Features & Benefits
- OEM Reference Tool (JDG1560): Designed for John Deere injection pump gear removal procedures
- Pump Compatibility: Works with DB2, DB4, and DE10 injection pump systems
- Engine Coverage: Fits John Deere 6059 and 6068 diesel engines
- Controlled Gear Removal: Evenly distributes force to prevent gear or shaft damage
- Protects Timing Components: Maintains integrity of gear teeth and pump shaft alignment
- Stable Mounting Design: Provides secure attachment for puller hardware
- Heavy-Duty Construction: Built for repeated use in professional service environments
Typical Applications
- Injection pump drive gear removal
- Fuel injection pump service and replacement
- Engine timing and synchronization procedures
- Gear train inspection and repair
- Engine overhaul and rebuild operations
Why It Matters
Injection pump timing is critical to diesel engine performance, fuel efficiency, and emissions. Improper removal of the drive gear can damage the gear teeth, distort the hub, or affect timing accuracy—leading to costly repairs and poor engine operation.
The JDG1560 ensures the gear is removed safely and correctly, preserving timing integrity and allowing precise reinstallation. For technicians, this reduces risk, improves efficiency, and ensures reliable engine performance after service.
