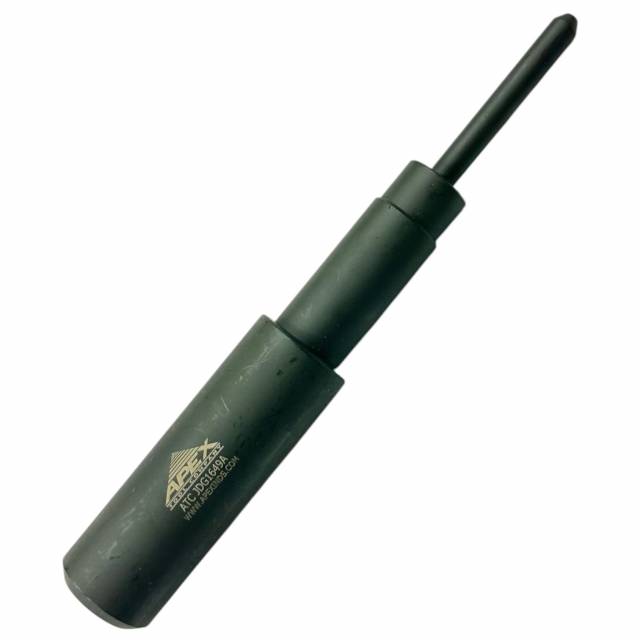

The JDG1649A Injector Sleeve Installer is a precision service tool designed for installing injector sleeves in John Deere 4045, 6068, and 6090 diesel engines.
These engines use injector sleeves to separate fuel, coolant, and combustion zones within the cylinder head. Proper installation is critical to ensure sealing integrity and correct injector alignment.
The JDG1649A is engineered to guide and press the sleeve into the bore with controlled, even force. This ensures the sleeve is installed:
- Square to the cylinder head bore
- To the correct depth
- Without distortion or damage to sealing surfaces
Improper installation methods can lead to:
- Coolant leaks into the combustion chamber
- Fuel system contamination
- Injector misalignment and poor spray pattern
- Repeat cylinder head repairs
This tool provides a consistent, repeatable installation process, eliminating guesswork and reducing the risk of sleeve-related failures.
Key Features & Benefits
- Designed for John Deere 4045, 6068, and 6090 engines
- Ensures accurate injector sleeve installation
- Maintains proper alignment and seating depth
- Prevents sleeve distortion and sealing issues
- Improves injector positioning and performance
- Reduces risk of coolant and fuel cross-contamination
- Heavy-duty construction for professional use
Typical Applications
- Injector sleeve installation and replacement
- Cylinder head service and repair
- Engine rebuild and overhaul procedures
- Fuel system sealing and maintenance
- John Deere diesel engine service
Why It Matters
Injector sleeves are critical for maintaining engine sealing and performance. Improper installation can result in:
- Coolant intrusion into cylinders
- Fuel leaks or pressure loss
- Poor engine performance
The JDG1649A ensures sleeves are installed correctly, helping technicians achieve reliable, leak-free operation.
