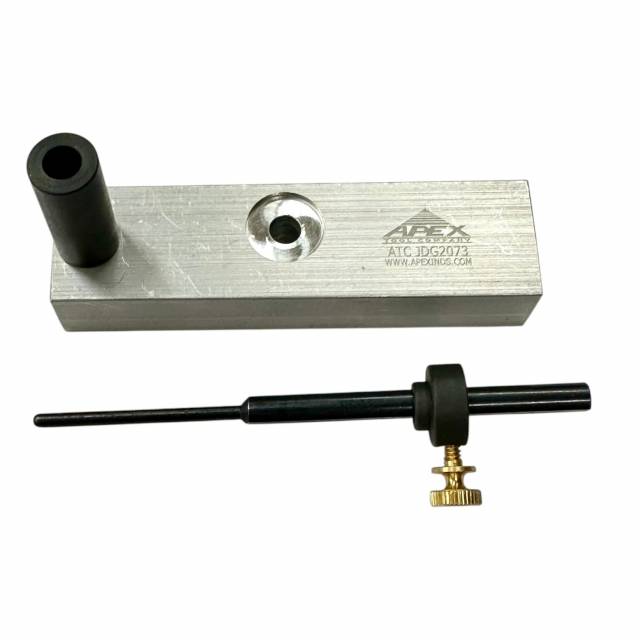

The JDG2073 Fuel Control Rack Measuring Tool is a precision service tool designed for setting and verifying fuel control rack position on John Deere 2.4L diesel engines.
On these engines, the fuel control rack regulates injector fuel delivery by controlling the internal position of the injection system. Proper rack calibration is critical to ensure:
- Correct fuel delivery across all cylinders
- Balanced engine performance
- Compliance with emissions and operating specifications
The JDG2073 is used to measure rack travel and position during setup, providing an accurate reference point for calibration. This allows technicians to verify that the rack is within specification during:
- Fuel system adjustments
- Injector or pump service
- Engine rebuild and reassembly
Improper rack setting can lead to:
- Uneven fuel delivery
- Rough engine operation or misfire
- Excessive smoke or emissions
- Reduced engine efficiency and power
The tool is designed to interface directly with the rack measurement point, ensuring repeatable and consistent readings without guesswork.
Key Features & Benefits
- Designed for John Deere 2.4L diesel engines
- Measures fuel control rack position accurately
- Ensures proper fuel system calibration
- Helps balance fuel delivery across cylinders
- Prevents over-fueling or under-fueling conditions
- Improves engine performance and efficiency
- Durable construction for professional use
Typical Applications
- Fuel control rack measurement and adjustment
- Injector and fuel system service
- Engine calibration and setup
- Engine rebuild and reassembly
- Maintenance of John Deere 2.4L engines
Why It Matters
Fuel control rack adjustment is a critical calibration step. Incorrect settings can result in:
- Poor engine performance
- Increased emissions
- Uneven cylinder operation
The JDG2073 ensures accurate measurement, allowing technicians to set the fuel system correctly for smooth, efficient, and reliable engine operation.
