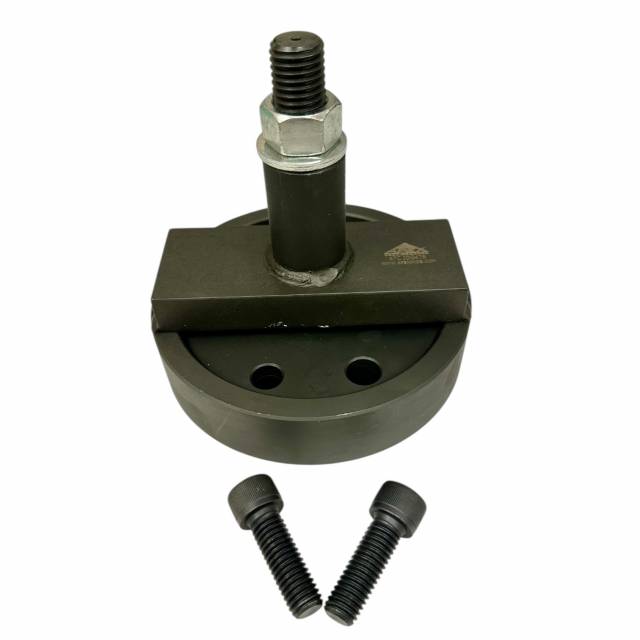

The JDG476 Rear Crankshaft Seal Installer is a precision OEM-reference service tool engineered for the correct installation of rear main oil seals on John Deere 4045, 6076, 6081, and 6466 diesel engines. Designed to ensure accurate seal placement and alignment, this tool is critical for preventing oil leaks and maintaining long-term engine sealing integrity.
Rear crankshaft seals are installed at the engine block-to-flywheel interface—an area that is both difficult to access and highly sensitive to installation errors. The JDG476 is specifically designed to guide the seal squarely onto the crankshaft and into the housing bore, applying even pressure to prevent distortion, cocking, or damage to the sealing lip.
This installer is particularly important when working with modern seal designs, including unitized and lip-type rear main seals, where proper depth and alignment are essential for effective sealing. By replicating OEM installation procedures, the JDG476 eliminates guesswork and ensures the seal is installed to the correct depth and orientation every time.
Constructed from high-strength, precision-machined materials, the JDG476 delivers durability and repeatable accuracy in professional diesel repair environments, making it an essential tool for engine rebuilders and service technicians.
Key Features & Benefits
- OEM Reference Tool (JDG476): Designed for factory-correct rear seal installation procedures
- Multi-Engine Compatibility: Fits John Deere 4045, 6076, 6081, and 6466 engines
- Ensures Proper Seal Alignment: Guides seal evenly into position without distortion
- Prevents Oil Leaks: Eliminates common installation errors that lead to premature seal failure
- Controlled Installation Depth: Helps achieve correct seating depth and orientation
- Protects Seal and Crankshaft: Prevents lip damage and crankshaft surface scoring
- Heavy-Duty Construction: Built for repeated use in professional shop environments
Typical Applications
- Rear main crankshaft seal installation
- Engine overhaul and rebuild procedures
- Flywheel housing service
- Oil leak repair at rear crankshaft location
- Agricultural and industrial diesel engine maintenance
Why It Matters
Rear crankshaft seal replacement is a labor-intensive job that often requires removal of the transmission or flywheel housing. An improperly installed seal can quickly fail, resulting in oil leaks that require repeating the entire repair process.
The JDG476 ensures the seal is installed correctly the first time, protecting both the engine and the technician’s time investment. By guaranteeing proper alignment and sealing, it reduces comebacks, improves reliability, and ensures long-term engine performance.
