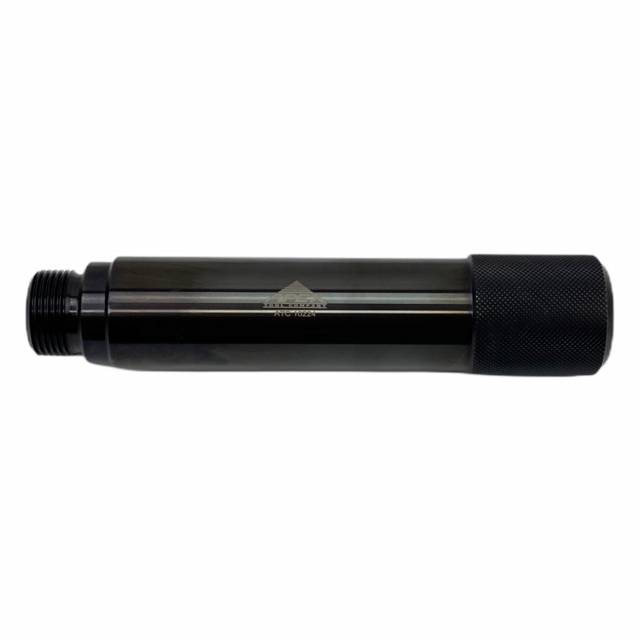

ATC 10224 C15 Injector Sleeve Installer – Caterpillar C-15

The ATC 10224 Injector Sleeve Installer is a precision diesel engine service tool engineered to install injector sleeves accurately and without damage in Caterpillar C-15 diesel engines. Injector sleeves form a critical seal between the injector body and the cylinder head, helping maintain proper combustion chamber sealing and preventing coolant or combustion gas leakage. Proper installation is essential to engine performance, longevity, and reliability.

Improper methods of installing injector sleeves—such as using improper drivers, hammers, or generic tools—can cause distortion of the sleeve, damage to sealing surfaces, or bore face scoring, which can lead to coolant leaks, misfires, and costly repairs. The ATC 10224 Installer applies controlled, even force across the sleeve’s outer diameter, ensuring it seats squarely and to the correct depth in the cylinder head without damage.

Constructed from high-strength, precision-machined steel, this tool is built for professional environments, including heavy-duty diesel repair shops, fleet maintenance facilities, and engine rebuild operations. It streamlines injector service workflows, enhances sealing consistency, and helps deliver reliable, repeatable results every time.

---

Key Features & Benefits

• Engine-specific design: Precisely sized for Caterpillar C-15 injector sleeves

• Controlled press installation: Delivers consistent seating without sleeve distortion

• Protects critical components: Helps prevent bore surface damage and sealing lip wear

• Professional-grade construction: Durable tool built for repeat shop use

• Improves service reliability: Reduces risk of leaks and rework after sleeve installation

Typical Applications

• Installing injector sleeves during top-end service, rebuild, or overhaul on Caterpillar C-15 engines

• Injector maintenance where sleeves have been removed for head work or cleaning

• Fleet and heavy-duty diesel shop service operations

• Preventative maintenance and reseal procedures

Why It Matters

Injector sleeves play a key role in maintaining combustion pressure and protecting the cylinder head from injector-related wear. A sleeve that is improperly seated can allow coolant intrusion, combustion gas leakage, or injector blow-by, all of which negatively impact engine performance and reliability. The ATC 10224 C15 Injector Sleeve Installer helps technicians achieve precise, damage-free installations, reducing the likelihood of service failures and improving overall engine health.
