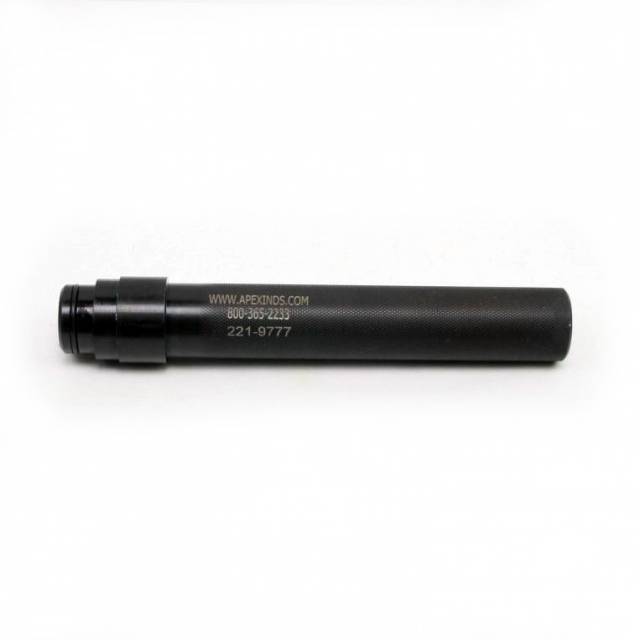

The ATC 221-9777 Injector Sleeve Installer is a precision diesel engine service tool engineered to install injector sleeve tubes on Caterpillar 3126, 3126B, and C-7 engines safely and accurately. These injector sleeves form a critical interface between the injector and the cylinder head, providing a stable, sealed bore for injector seating and combustion sealing. Installing them correctly is essential for maintaining proper compression, injector sealing, and long-term engine performance.
Improper installation—such as hammering sleeves with makeshift tools—can lead to distorted sleeves, cracked cylinder heads, coolant leaks around the injector bore, or uneven sealing surfaces. The ATC 221-9777 applies controlled, even force to press sleeves squarely and to the exact depth required, protecting both the sleeve and the surrounding head. It is designed for smooth engagement with the injector sleeve, minimizing the risk of damage to the sealing edges and head bore.
This installer tool is ideal for use in diesel repair shops, engine rebuild facilities, and fleet maintenance departments handling Caterpillar medium-duty engines. It ensures consistent, professional results whether during preventive maintenance, top-end engine rebuilds, or injector service.
Key Features & Benefits
-
Engine-specific design: Tailored for Caterpillar 3126, 3126B, and C-7 injector sleeves
-
Precision press-fit installation: Provides controlled, even force to install sleeves correctly
-
Protects critical surfaces: Helps prevent sleeve damage, bore scoring, and head distortion
-
Durable construction: Professional-grade tooling for repeated shop use
-
Improves service quality: Reduces risk of coolant leaks and poor injector sealing
Typical Applications
-
Installing injector sleeves during top-end service or engine rebuilds
-
Injector overhaul during failed sleeve or head service
-
Medium-duty diesel engine maintenance
-
Engine rebuild facilities and fleet service departments
Why It Matters
Injector sleeves must be seated precisely and without damage to ensure proper combustion sealing and coolant containment around injector bores. A poorly installed sleeve can allow coolant to leak into the combustion chamber, cause misfires, or result in head damage. The ATC 221-9777 Installer ensures professional-grade installation every time, reducing rework and extending engine life.
