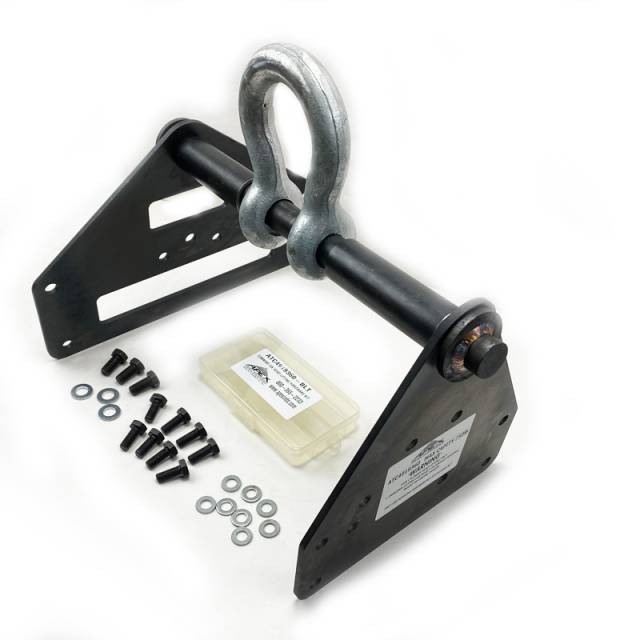

The ATC 4919360 Head Lifting Bracket is a precision-engineered fixture designed specifically for safe and efficient lifting of cylinder heads on Cummins ISX12, ISX15, ISX, and X15 heavy-duty diesel engines. Built to meet or exceed OEM Cummins part number 4919360, this bracket accommodates the full head assembly, facilitating removal and installation while maintaining alignment and control.
Featuring a robust steel construction rated for a maximum lifting capacity of 750 lb, this tool ensures your shop can handle the weight and movement of large-bore diesel heads with safety & confidence. It’s important to note: this fixture is designed solely for lifting the cylinder head, and should not be used for lifting or supporting the entire engine.
With symmetrical mounting points to interface directly with the factory head bolt pattern, and a pivoting lifting eye for overhead crane or hoist attachment, the ATC 4919360 streamlines the cylinder head removal process and enhances technician safety.
Key Features & Benefits
-
Direct replacement for Cummins OEM fixture #4919360.
-
Specifically designed for Cummins ISX12, ISX15, ISX and X15 engine families.
-
Rated lifting capacity up to 750 lb, suitable for diesel head removal.
-
Robust steel construction with durable finish, designed for frequent use in heavy-duty engine shops.
-
Helps maintain alignment during head removal and installation, reducing risk of damage and ensuring smoother re-assembly.
-
Enhances technician safety during heavy component handling and reduces rework due to misalignment.
Applications
Use this tool during full engine overhauls, head gasket replacements, or whenever the cylinder head needs to be removed from a Cummins ISX-series or X15 engine. Whether you’re a remanufacturer, fleet maintenance shop, or heavy-duty service provider, this fixture is essential for controlled, safe head handling.
