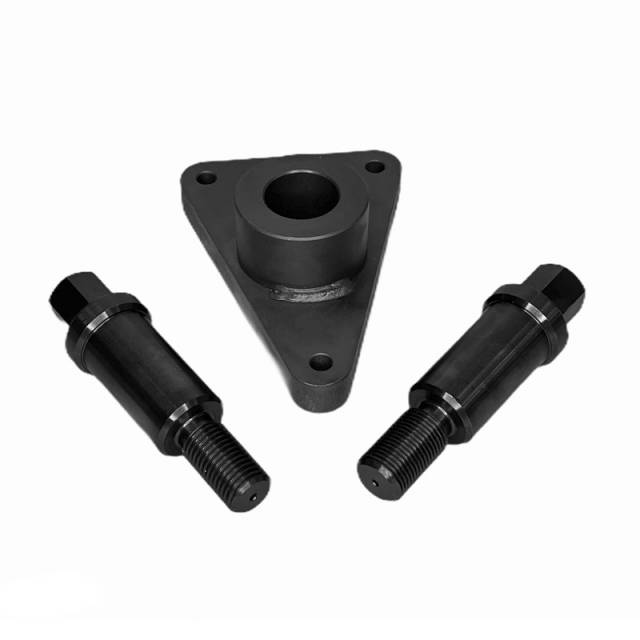

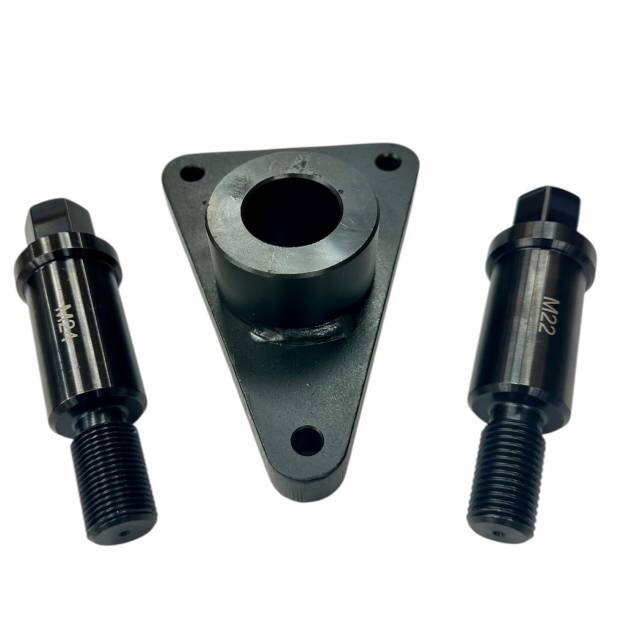

The ATC J-35906-A Cam Gear Pilot is a precision alignment tool designed for installing and aligning the camshaft gear on Detroit Diesel Series 60 engines, compatible with both early (old) and updated (new) cam gear bolt designs.
During camshaft gear installation, maintaining perfect alignment between the camshaft and gear is critical to ensure proper timing and prevent component damage. The cam gear must be installed squarely onto the camshaft while maintaining correct positioning relative to the timing train.
The J-35906-A functions as a pilot guide, helping center and support the cam gear during installation. This allows technicians to:
- Align the cam gear precisely with the camshaft
- Prevent cocking or misalignment during installation
- Ensure smooth engagement of gear teeth
Improper installation methods can lead to:
- Misaligned cam gear
- Premature gear wear or noise
- Incorrect timing relationship
- Damage to camshaft or gear mounting surfaces
This tool is specifically designed to work with both old and new bolt configurations, making it suitable across different Series 60 engine variations.
Key Features & Benefits
- Designed for Detroit Diesel Series 60 engines
- Compatible with old and new cam gear bolt styles
- Provides precise alignment during cam gear installation
- Prevents gear misalignment and component damage
- Ensures proper timing gear engagement
- Improves installation accuracy and efficiency
- Durable construction for professional use
Typical Applications
- Camshaft gear installation
- Engine timing system service
- Engine rebuild and reassembly
- Gear train alignment procedures
- Detroit Diesel Series 60 maintenance
Why It Matters
Cam gear alignment is critical for maintaining proper engine timing. Improper installation can result in:
- Timing errors
- Gear wear or noise
- Reduced engine performance
The J-35906-A ensures accurate alignment, helping technicians achieve reliable timing and long component life.
