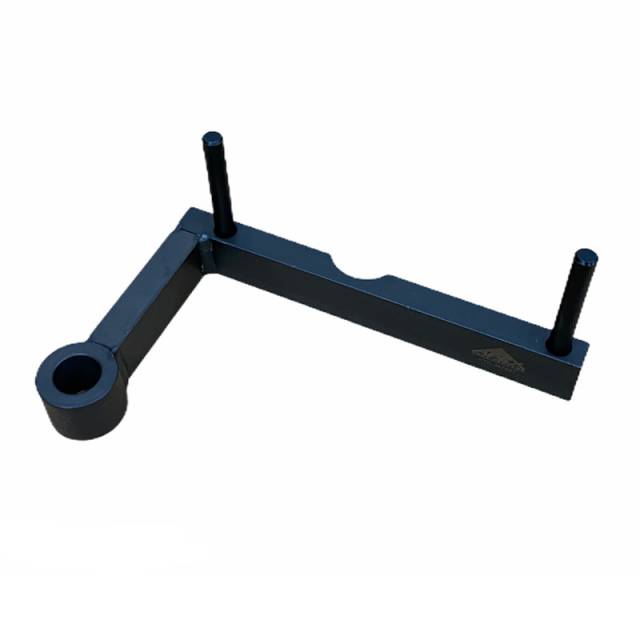

The ATC J-47487 Cantilever Tool is a specialized support tool designed for use on Detroit Diesel DD13 and DD15 engines during service procedures involving front engine components and gear train access.
On DD13/DD15 platforms, certain components—such as the front gear train, camshaft assemblies, and related housings—require controlled support during removal and installation. The cantilever design of these assemblies means they can place uneven stress on mounting points if not properly supported.
The J-47487 is engineered to provide stable, balanced support, allowing technicians to:
- Hold components in proper position during service
- Prevent misalignment during installation
- Reduce stress on mounting surfaces and fasteners
Without proper support, technicians may encounter:
- Component misalignment during reassembly
- Damage to mounting surfaces or threads
- Difficulty handling heavy or offset components
This tool helps maintain correct positioning and alignment, improving both service accuracy and safety.
Key Features & Benefits
- Designed for Detroit Diesel DD13 & DD15 engines
- Provides support for cantilevered engine components
- Maintains proper alignment during service procedures
- Reduces stress on mounting points and fasteners
- Improves safety when handling heavy assemblies
- Simplifies installation and reassembly
- Heavy-duty construction for professional use
Typical Applications
- Front gear train service
- Camshaft and timing component work
- Engine disassembly and reassembly
- Component alignment during installation
- Detroit Diesel DD13 / DD15 maintenance
Why It Matters
Cantilevered engine components can shift or sag during service if not properly supported. This can lead to:
- Misalignment during assembly
- Component damage
- Increased installation difficulty
The J-47487 provides stable support, helping technicians maintain proper alignment and complete repairs efficiently.
