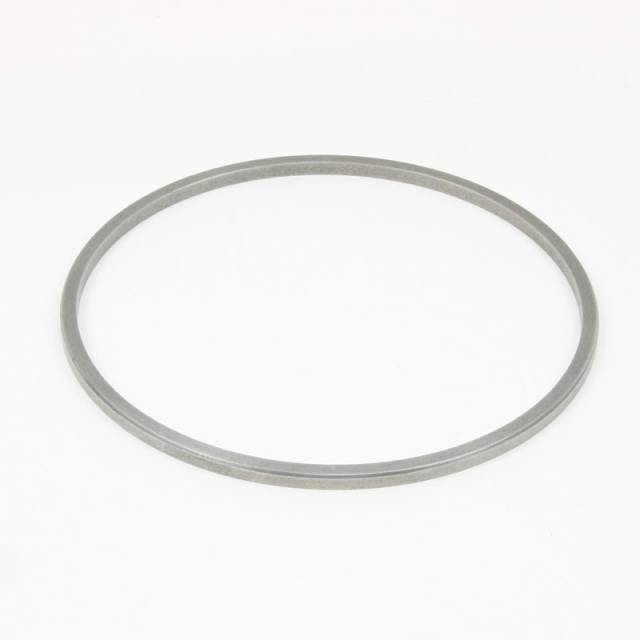

The ATC-8260 20/20 Oversize (also referenced as PT-8260) is a precision block insert designed specifically forCaterpillar 3406 C15
engine blocks. This upper deck insert fills and restores the upper
counterbore (shim ledge) area of the block to factory dimensions,
providing a stable, concentric surface for correct liner protrusion and
sealing. The external diameter of this insert is 6.685″ with a height of 0.225″.
In cases where the deck surface or
upper ledge has been Pitted, Worn, or Cracked, the LS-8260 insert allows
rebuilders to restore the proper counterbore without excessive material
removal. It press-fits into the prepared counterbore and provides a
durable, corrosion-resistant surface ideal for long-term engine
performance.
Key Features & Benefits
-
Engineered specifically for Cat 3406 engine blocks
-
OD 6.685″, Height 0.225″ — matches OEM block insert dimensions
-
Restores upper deck shim ledge / counterbore to precise spec
-
Helps preserve liner protrusion and sealing integrity
-
Made of high-quality material suitable for engine rebuild environments
Typical Applications
-
Rebuilding / restoring Caterpillar 3406 blocks after machining or damage
-
Correcting misaligned or worn upper deck surfaces
-
Preparing engine blocks for liner installation with accurate shim alignment
-
Use in heavy-duty repair shops, diesel rebuild centers, and fleet engine shops
