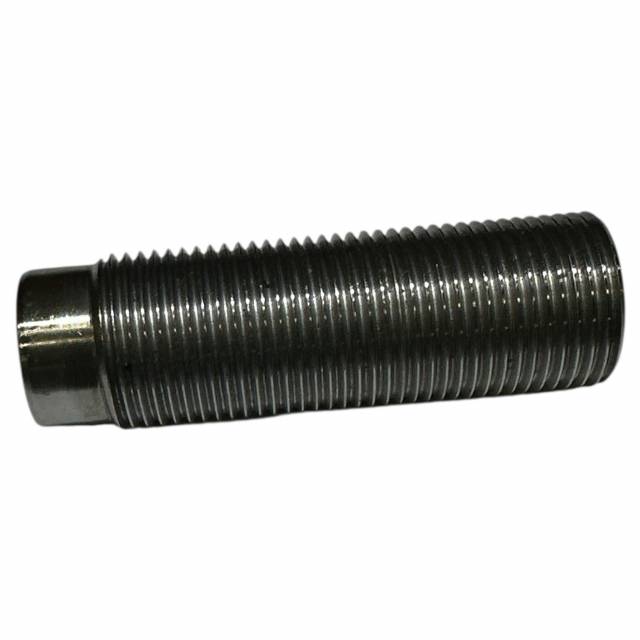

The ATC-8707 / PT-8707 Detroit Diesel 60 Series Bolt Hole Thread Insert is a precision repair component designed to restore damaged or compromised head bolt holes in Detroit Diesel 60 Series (DD13, DD15, DD16) engine blocks. This insert features an internal thread size of M16 × 2.00 and an external thread dimension of 13/16"-16 TPI, with an overall length of 2.50", providing strong engagement and reliable thread restoration.
When original head bolt threads become stripped, worn, or out of tolerance, installing the ATC-8707 insert restores proper bolt engagement, alignment, and clamping strength. This repair solution allows technicians to restore block integrity without expensive machining or block replacement, making it ideal for diesel engine rebuilders, repair facilities, and remanufacturing operations.
Key Features & Benefits
- Internal thread: M16 × 2.00; external thread: 13/16"-16 TPI
- 2.50" overall length provides deep engagement for secure bolt seating
- Restores damaged or stripped head bolt holes in Detroit Diesel 60 Series engines
- Compatible with M20111-DD alignment fixtures and standard thread repair kits
- Helps maintain correct bolt alignment and proper head gasket sealing
Suggested Use & Installation Notes
For best results, install the ATC-8707 insert using a proper alignment fixture such as the M20111-DD to maintain correct axis alignment during reaming, tapping, and insert installation. After installation, ensure threads are clean and verify torque bore alignment before cylinder head installation.
