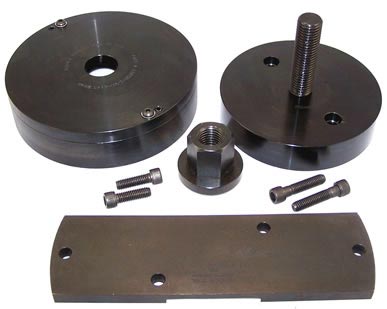

The M10060 Caterpillar Seal & Wear Sleeve Installer Kit – Brake Saver is a precision engine service tool set specifically engineered for installing front and rear crankshaft seals and wear sleeves on Caterpillar 3400 Series engines equipped with a BrakeSaver unit. This kit provides technicians with all the necessary components to seat seals and wear sleeves accurately, concentrically, and to OEM-style depth—ensuring reliable sealing performance and long-term engine durability.
BrakeSaver systems on Caterpillar 3400-series engines are used to utilize engine oil pressure to actuate a separate braking mechanism, and these assemblies include additional sealing surfaces that must be installed carefully to prevent leaks, premature wear, and hydraulic contamination. The M10060 installer kit serves as a professional alternative to OEM Cat 8T-2855 tooling and includes fixtures such as a rotor holding plate (an alternative to Cat 5P-8718) to support precise installation operations.
This installer kit is ideal for diesel engine rebuild shops, fleet maintenance facilities, and professional technicians performing BrakeSaver reseal and overhaul procedures. By using a purpose-built installer rather than improvised methods, technicians can significantly reduce the risk of seal distortion, wear sleeve misalignment, and damage to expensive engine components.
Key Features & Benefits
-
Designed for Caterpillar 3400 Series BrakeSaver applications: Custom-fit installer kit for BrakeSaver-equipped engines.
-
Complete seal & wear sleeve installation set: Works with both front seal #4W-8133 and rear seal #8W-8134 (BrakeSaver style).
-
OEM-style tooling alternative: Serves as a high-quality aftermarket alternative to Cat 8T-2855 and includes a rotor holding plate alternative to Cat 5P-8718.
-
Precision press-fit design: Ensures concentric, damage-free seating of seals and wear sleeves.
-
Protects components: Helps prevent seal lip damage, wear sleeve distortion, and crankshaft bore scoring.
-
Professional-grade construction: Built for repeated heavy-duty shop use and reliable performance.
Typical Applications
-
Installation of crankshaft seals and wear sleeves on Caterpillar 3400 Series engines with BrakeSaver units.
-
Engine overhaul reseal procedures.
-
BrakeSaver service and maintenance during engine repair.
-
Diesel repair shops and fleet maintenance facilities.
Why It Matters
Accurate installation of crankshaft seals and wear sleeves is critical to maintaining engine oil containment, protecting internal engine components, and preventing costly leaks or seal failures. The BrakeSaver system adds complexity to typical crank seal service, requiring specialized tooling to handle unique sealing surfaces and assemblies. Using the M10060 Seal & Wear Sleeve Installer Kit helps technicians achieve professional, repeatable results while preserving engine integrity and reducing maintenance costs.
