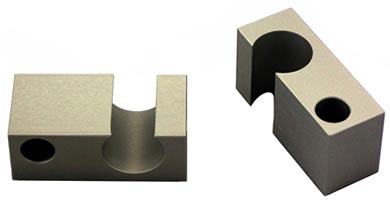

The M10090 Caterpillar 3406 Engine Tool with Jacobs Oil Stopper is a precision service solution designed for heavy-duty diesel maintenance on Caterpillar 3406 engines equipped with Jacobs (engine brake) systems. This tool combines reliable oil control with service convenience, allowing technicians to hold engine oil off the camshaft area and upper valve train during Jacobs brake, rocker, or top-end work—minimizing oil migration that can interfere with measurement, adjustment, or timing procedures.
The Caterpillar 3406 is a widely used heavy-duty diesel engine found in Class 8 trucks, vocational equipment, buses, and industrial installations. Engine brake (Jacobs) systems require specific service considerations, and correct oil control during inspection or adjustment improves accuracy and reduces mess. The M10090 ensures that technicians can block oil migration to the top end, isolating the valve train and assisting with tasks like valve lash setup, rocker arm service, and camshaft timing work.
Constructed from durable materials engineered to withstand repeated shop use, this tool is ideal for diesel repair shops, fleet maintenance facilities, engine rebuild centers, and professional technicians who demand precise, controlled service conditions when working on 3406 engines with Jacobs braking systems.
Key Features & Benefits
-
Designed specifically for Caterpillar 3406 engines equipped with Jacobs engine brakes
-
Helps stop oil migration into valve train areas during service
-
Improves accuracy when performing valve lash adjustment, rocker service, and timing inspection
-
Durable construction suitable for repeated professional use
-
Reduces cleanup and increases shop efficiency
-
Facilitates safer, neater engine service
Typical Applications
-
Oil control during Jacobs engine brake maintenance
-
Front-end engine service requiring oil management
-
Valve adjustment and timing work on 3406 engines
-
Rocker arm or camshaft inspection where oil interference impacts measurements
-
Diesel engine rebuilds and top-end repair procedures
Why It Matters
Heavy-duty diesel engines like the Caterpillar 3406 produce significant internal oil flow during operation, and when servicing the top end—especially on engines with Jacobs brakes—oil in the valve train can confuse measurements or cause slipping, contamination, and mess. The M10090 tool with Jacobs oil stopper simplifies service, improves measurement accuracy, and reduces the risk of oil-related interference during critical engine work, helping technicians achieve professional, dependable results.
