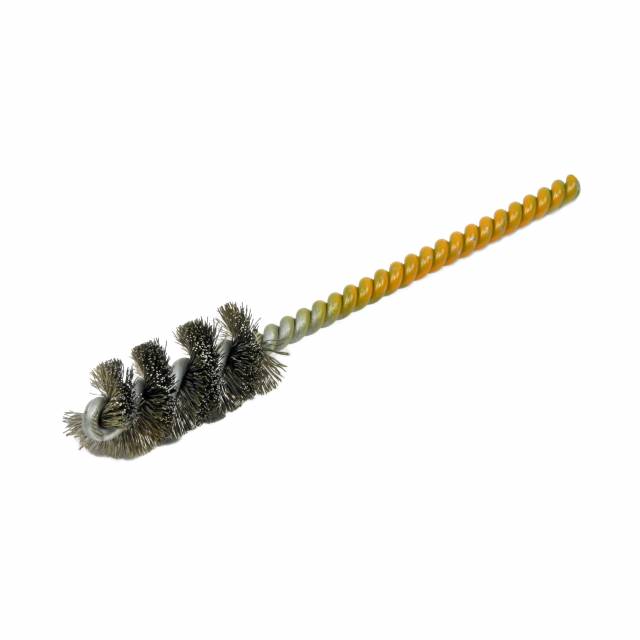

M10120 Caterpillar 3406 Headbolt Hole Brush

The M10120 Caterpillar 3406 Headbolt Hole Brush is a purpose-built engine service tool designed to clean and prepare headbolt holes on Caterpillar 3406 diesel engines prior to installation of headbolts during engine assembly or overhaul. Over time, combustion by-products, corrosion, old sealant, and debris can accumulate in cylinder headbolt holes, making it difficult to achieve accurate torque and consistent clamp load. Cleaning these holes properly ensures that torque values are reliable and that headbolts deliver correct clamping force—essential for head gasket sealing and overall engine durability.

This heavy-duty brush features stiff, corrosion-resistant bristles and a robust shaft sized specifically for the bolt hole diameters found on 3406 cylinder heads and blocks. When used with a drill or powered driver, the M10120 thoroughly removes carbon, rust, and old gasket material from headbolt bores and threads, enabling technicians to get clean, straight, and debris-free holes before torque-down. This not only improves torque accuracy but also helps prevent bolt breakage, mis-torque situations, and head gasket sealing issues.

Designed for professional diesel technicians, engine rebuild shops, and fleet maintenance facilities, this brush is an essential preparatory tool for quality engine assembly on Caterpillar 3406 applications.

---

Key Features & Benefits

• Engine-specific design: Sized for Caterpillar 3406 headbolt holes for precise cleaning

• Professional cleaning action: Removes carbon, rust, and debris from bolt holes

• Improves torque accuracy: Clean threads help ensure correct headbolt clamp load

• Reduces service issues: Helps prevent bolt breakage and head gasket failures due to poor seating

• Durable construction: Heavy-duty brush and shaft built for repeated shop use

• Easy to use: Works with standard drills or powered drivers

Typical Applications

• Cleaning headbolt holes prior to cylinder head installation on Caterpillar 3406 engines

• Engine rebuilds, reseal jobs, and top-end overhaul procedures

• Preventative maintenance to ensure consistent torque values

• Fleet and heavy-duty diesel maintenance facilities

Why It Matters

Proper preparation of headbolt threads and holes is a small but critical step in engine assembly that has a major impact on clamping force consistency, head gasket sealing, and overall engine life. Contaminated or clogged headbolt holes can lead to inaccurate torque readings, uneven clamp load, or even bolt failure during tightening. The M10120 Caterpillar 3406 Headbolt Hole Brush provides technicians with the right-sized tool to clean headbolt holes thoroughly—improving torque reliability, reducing rework, and enhancing long-term engine performance.
