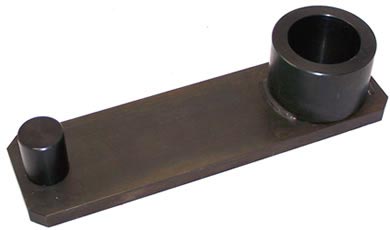

The M10160 Caterpillar 3406E Idle Gear Fixture is a precision engine service tool designed for professional diesel mechanics and engine rebuild facilities working on Caterpillar 3406E engines. Built as a direct replacement for the OEM Cat 9U-7255 idle gear fixture, this tool aids in the installation, positioning, and support of the adjustable idler gear assembly during timing gear service and inspection. By accurately locating and holding the idle gear in place, the fixture simplifies critical tasks such as measuring timing gear backlash and alignment, which ensures correct valve and piston timing — key to optimal engine performance and longevity.
In heavy-duty diesel engines like the 3406E — which shares common timing gear layout with related Cat engines — the adjustable idler gear must be held accurately when checking or setting gear backlash. The idle gear fixture provides reliable, repeatable positioning so technicians can achieve correct gear mesh and timing reference points without introducing errors or excessive wear. Use of this job-specific fixture significantly enhances service quality compared to improvised tools or guesswork.
Key Features & Benefits
-
OEM Replacement: Direct aftermarket equivalent of Caterpillar 9U-7255 idle gear fixture for 3406E engine timing gear service.
-
Precise Idler Gear Support: Holds the adjustable idler gear assembly in place for accurate backlash measurement and timing procedures.
-
Professional-Grade Construction: Designed for durability and repeated use in heavy-duty engine overhaul environments.
-
Improved Engine Timing Accuracy: Facilitates correct alignment of gear train components, reducing the risk of premature wear or performance issues.
-
Time-Saving: Makes timing gear service quicker and more dependable than using makeshift fixtures.
Typical Applications
-
Service and rebuild procedures on Caterpillar 3406E diesel engines requiring gear timing checks or idler gear installation.
-
Ideal for heavy-duty engine shops, fleets, and dealership service departments performing regular maintenance or full engine overhauls.
-
Use during timing gear backlash measurement, alignment, and static timing checks.
Why It Matters
Accurate timing gear setup is essential in high-performance diesel engines. Improper idler gear alignment can lead to incorrect valve timing, noise, accelerated wear, or even catastrophic engine failure. The M10160 Idle Gear Fixture eliminates guesswork, providing a dedicated, stable platform to support the idler gear during critical engine timing procedures — improving both reliability and service quality.
