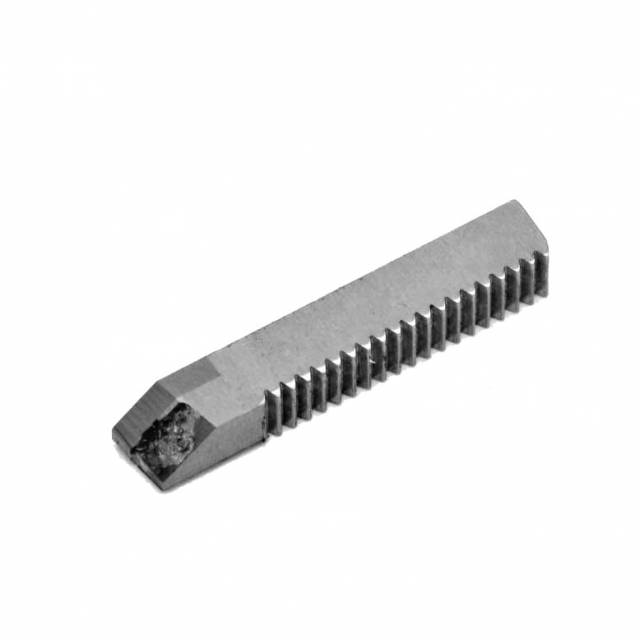

M10229-5 Replacement Shim Cutter Bit – For M10229 Caterpillar C-10, C-12 & C-13 Series

M10229-5 Replacement Shim Cutter Bit for M10229 cutter plate, to be used on the Caterpillar C10, C12 & C13 Series

The M10229-5 Replacement Shim Cutter Bit is a precision service component designed as a direct replacement cutting bit for the M10229 Caterpillar Shim Cutter Plate used on C-10, C-12, and C-13 diesel engines. When performing top-deck counterbore or shim-cutting operations during cylinder head service, worn or dull cutter bits can compromise cut quality, surface finish, and accuracy. The M10229-5 ensures the M10229 tool continues to deliver clean, true shim cuts to specification, helping technicians restore or repair engine upper deck surfaces efficiently and precisely.

Shim cutter bits are critical for preparing surfaces where cylinder liners, insert bushings, and shimmed components require an optimal bore finish. A worn or damaged bit can lead to irregular cuts, poor sealing surfaces, and potential rework—impacting engine performance, oil control, and overall durability. The M10229-5 Replacement Shim Cutter Bit is heat-treated and ground to maintain cutting geometry and long-term wear resistance needed in heavy-duty machine-shop and engine overhaul environments.

Professional engine rebuilders, machine-shop technicians, and diesel service facilities will find this replacement bit essential for maintaining the performance and reliability of the M10229 Shim Cutter Plate during Caterpillar C-series counterbore and shim cutting operations.

---

Key Features & Benefits

• Direct OEM replacement: Designed for use with the M10229 Shim Cutter Plate

• Application coverage: Fits Caterpillar C-10, C-12, C-13 series engines

• Precision cutting geometry: Maintains accuracy and surface finish in shim/counterbore operations

• Durable construction: Heat-treated for wear resistance and extended service life

• Improves service quality: Ensures consistent, true cuts for reliable engine rebuild outcomes

• Ideal for professional shops: Suited for machine-shop and heavy-duty diesel service use

---

Typical Applications

• Replacement cutting bit for M10229 shim cutter plate on C-10, C-12, C-13 engines

• Cylinder head deck shim cutting and counterboring

• Preparing upper deck and bore surfaces during engine overhaul

• Professional engine rebuild and remanufacturing facilities

---

Why It Matters

Accurate shim cutting and counterbore preparation are vital to achieving flat, true sealing surfaces on cylinder heads and engine decks. Dull or damaged cutter bits can lead to poor surface quality, incorrect dimensions, and increased rework, ultimately affecting engine performance and sealing integrity. By using the M10229-5 Replacement Shim Cutter Bit, technicians ensure that their M10229 tooling continues to deliver precision results, repeatable surface finishes, and efficient machine-shop operations for Caterpillar C-series engines.
