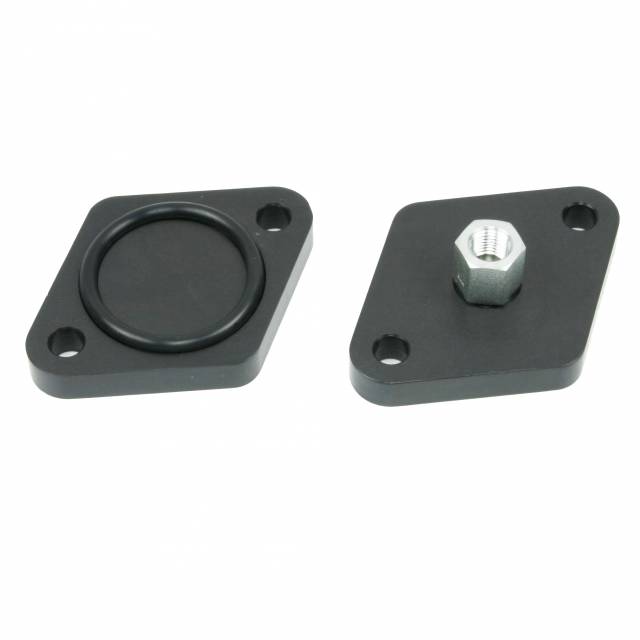

The M10237 Caterpillar Oil Cooler Test Fixture is a precision shop tool designed for technicians servicing the Caterpillar 3406 and 3408 diesel engines found in heavy-duty trucks and equipment. This oil cooler test fixture provides a reliable way to mount, support, and pressure test oil cooler cores during engine overhaul, rebuild, or troubleshooting procedures. It helps identify leaks and verify cooler integrity before reinstalling cores into the engine, ensuring the oil cooler system maintains proper lubrication and cooling performance — a critical factor in preventing overheating and oil degradation on high-torque diesel applications.
The oil cooler on Cat 3406/3408 engines plays a fundamental role in maintaining safe oil operating temperatures and protecting internal components from wear caused by excessive heat. Over time, coolers can develop leaks, blockages, or degraded seals due to thermal cycling and contamination. Using a dedicated test fixture allows technicians to simulate operating conditions and check for proper sealing and flow without unnecessary downtime or guesswork.
Key Features & Benefits
-
Engine-Specific Design: Built for Caterpillar 3406 and 3408 series engines, ensuring proper fit with OEM cooler cores.
-
Oil Cooler Support & Testing: Provides a secure platform to mount coolers for pressure testing and leak inspection prior to reinstallation.
-
Professional-Grade Construction: Rugged build for repeated use in diesel engine service departments, repair shops, and fleet maintenance facilities.
-
Prevents Rework: Identifies cooler leaks and seal issues before engine assembly, reducing costly troubleshooting after installation.
-
Multi-Brand Compatibility: Available from multiple professional tool brands, giving technicians sourcing flexibility.
Applications
-
Oil cooler inspection and pressure testing on Caterpillar 3406 / 3406E / 3408 engine oil coolers.
-
Engine rebuilds, coolant system service, and preventive maintenance.
-
Heavy-duty truck service departments, diesel rebuild facilities, and aftermarket repair shops.
-
Helps confirm cooler integrity after cleaning or prior to engine reassembly.
Why It Matters
The oil cooler is a vital component of a diesel engine’s lubrication and cooling circuit. In high-output applications like Cat 3406 and 3408 engines, oil temperatures can quickly rise beyond safe limits without proper cooling, leading to oil breakdown and accelerated internal wear. Testing the cooler with a dedicated fixture helps ensure reliable lubrication performance, leak-free operation, and longer engine life, avoiding unnecessary failures or warranty issues.
