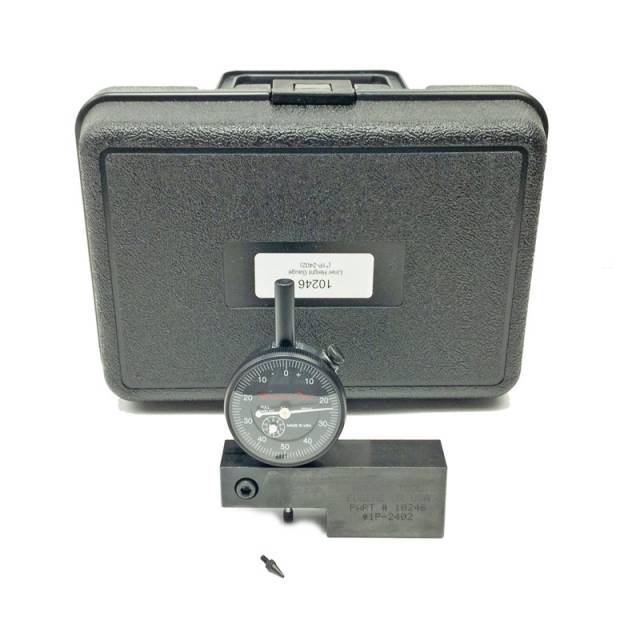

The M10246 Liner Height Gauge is a precision tool crafted to measure the protrusion (height) of cylinder liners above the engine deck in Caterpillar engines. Fully compatible with the CAT 1P-2402, this gauge enables engine rebuilders and machinists to ensure proper liner alignment, consistent protrusion, and reliable sealing before installation of heads or sleeves.
This gauge features a smooth, ground bottom surface, and is supplied with a durable carry case and an extra indicator tip for extended usability. Designed as an upgraded or alternative solution to the original OEM CAT tool, the M10246 combines reliability with flexibility for shop and field use.
By using this gauge during rebuilds, you can monitor liner heights across all cylinders and detect deviations that might lead to head gasket sealing issues, bore misalignment, or mechanical failures.
Key Features & Benefits
-
Direct replacement for CAT 1P-2402 gauge tool
-
Precisely ground bottom surface to provide stable reference for measurements
-
Comes with extra indicator tip and protective carry case
-
Helps ensure uniform liner protrusion across all cylinders
-
Reduces risk of head gasket failure, liner misalignment, and sealing issues
-
Durable construction for daily shop or field use
-
Allows technicians to catch and correct protrusion variances before head assembly
