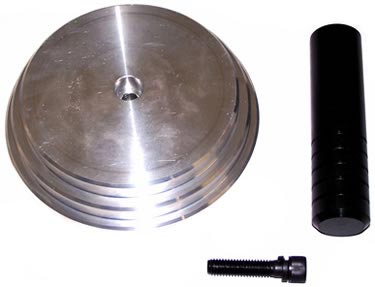

The M20103 Cylinder Liner Driver is a precision-machined installation tool designed for installing cylinder liners in Cummins NT, NH, and L10 diesel engines. This tool provides a controlled, even method for seating wet liners into the engine block while maintaining proper alignment and preventing damage to both the liner and block bore.
Cylinder liners on these platforms are critical sealing components that must be installed:
- Perfectly square to the block bore
- To the correct depth (liner protrusion)
- Without damaging sealing surfaces or O-rings
Improper installation methods—such as hammering or using incorrect drivers—can result in:
- Uneven liner seating
- Damaged liner flanges
- O-ring failure and coolant leaks
- Incorrect liner protrusion leading to head gasket failure
The M20103 addresses these issues with a full-contact driver surface matched to the liner flange, ensuring force is distributed evenly during installation. When used with a press or suitable driving method, the tool maintains alignment and prevents distortion of the liner.
Its application-specific design allows it to be used across multiple Cummins platforms (NT, NH, and L10), making it a versatile solution for engine rebuilders and heavy-duty diesel repair facilities.
Manufactured from high-strength steel, the M20103 is built to withstand repeated installation cycles in demanding shop environments while maintaining dimensional accuracy.
Key Features & Benefits
- Multi-Engine Compatibility: Designed for Cummins NT, NH, and L10 engines
- Full-Contact Driver Face: Ensures even force distribution across liner flange
- Maintains Proper Alignment: Prevents cocking or uneven installation
- Protects Sealing Surfaces: Reduces risk of liner and bore damage
- Supports Correct Liner Protrusion: Helps achieve proper head gasket sealing
- Heavy-Duty Construction: Built for repeated professional use
- Improves Installation Accuracy: Eliminates guesswork and rework
Typical Applications
- Cylinder liner installation (wet liners)
- Engine block rebuild and overhaul procedures
- Cummins NT / NH / L10 engine rebuilding
- Heavy-duty truck, industrial, and marine diesel service
- Machine shop and engine reconditioning work
Why It Matters
Cylinder liner installation is one of the most critical steps in engine rebuilding. Even minor installation errors can lead to:
- Coolant leaks
- Poor combustion sealing
- Premature engine failure
The M20103 ensures liners are installed squarely, evenly, and to proper depth, providing a reliable foundation for the rest of the engine assembly.
For professional technicians, this means:
- Reduced risk of costly failures
- Consistent liner protrusion measurements
- Long-term engine reliability
