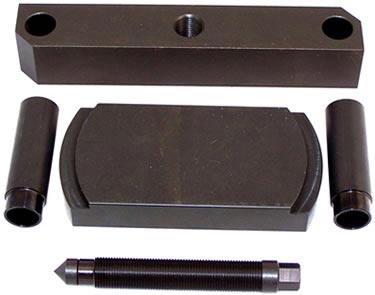

The M20104-A Liner Press is a heavy-duty, precision installation tool designed for installing cylinder liners in Cummins L10, M11, and ISM diesel engines. Engineered for controlled press-fit installation, this tool ensures liners are seated accurately within the block while protecting critical sealing surfaces and maintaining proper alignment.
These engine platforms utilize wet cylinder liners that must be installed with strict control over:
- Liner protrusion height
- O-ring compression and sealing integrity
- Squareness to the block bore
The M20104-A uses a mechanical press-style system to apply smooth, even axial force across the liner flange. This eliminates the inconsistencies associated with impact-style installation and ensures the liner is installed:
- Evenly and without distortion
- To proper seating depth
- Without damaging O-rings or bore surfaces
This is especially important on M11 and ISM engines, where liner height tolerance directly affects head gasket sealing, combustion efficiency, and long-term durability.
The tool is designed for use during both in-frame rebuilds and out-of-frame engine overhauls, allowing technicians to install liners directly in the block with full control over alignment and pressure application.
Manufactured from high-strength steel and designed for repeated high-load use, the M20104-A is an essential tool for professional diesel rebuilders and heavy-duty repair facilities servicing mid-range Cummins platforms.
Key Features & Benefits
- Press-Type Installation System: Provides controlled, even liner installation
- Engine Compatibility: Designed for Cummins L10, M11, and ISM engines
- Maintains Proper Alignment: Keeps liner square to bore during installation
- Protects O-Rings & Sealing Surfaces: Prevents installation damage
- Ensures Accurate Liner Protrusion: Critical for head gasket sealing
- In-Frame Capable: Suitable for in-chassis rebuilds
- Heavy-Duty Construction: Built for repeated professional use
Typical Applications
- Cylinder liner installation (wet liners)
- Cummins L10, M11, and ISM engine rebuilds
- In-frame overhaul procedures
- Engine block reconditioning
- Heavy-duty truck, industrial, and fleet maintenance
Why It Matters
Cylinder liner installation is one of the most precision-sensitive operations in diesel engine rebuilding. Improper installation can lead to:
- Coolant leaks past liner seals
- Incorrect liner protrusion
- Head gasket failure
- Reduced engine lifespan
The M20104-A provides a controlled, repeatable installation process, ensuring liners are installed correctly the first time.
For technicians and rebuilders, this means:
- Consistent liner height across cylinders
- Reduced risk of rework or failure
- Long-term engine reliability
