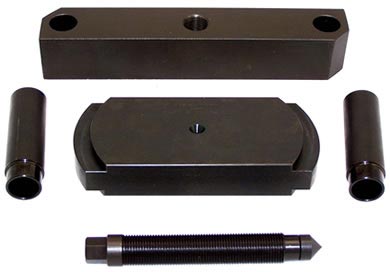

The M20104-C Liner Press is a heavy-duty, precision installation tool designed for installing cylinder liners in Cummins NT, NH, and N14 engines, as well as Caterpillar 3406 and Caterpillar 3408 platforms. This multi-application press provides a controlled, uniform method for seating wet liners into the engine block while maintaining strict alignment and sealing integrity.
These engines utilize wet cylinder liners that must be installed with exact control over:
- Liner protrusion height
- O-ring compression and sealing
- Bore alignment and squareness
The M20104-C uses a mechanical press-style system to apply smooth, even axial force across the liner flange. This ensures liners are installed without distortion, preventing damage to sealing surfaces and eliminating inconsistencies associated with impact-style installation methods.
The tool’s multi-platform compatibility makes it ideal for shops servicing both Cummins and Caterpillar heavy-duty engines, reducing the need for multiple dedicated tools while maintaining application-specific accuracy.
Its design allows for in-frame and out-of-frame installation, enabling technicians to install liners directly in the block with precise control over force and alignment—critical for maintaining engine integrity during rebuilds.
Constructed from high-strength steel, the M20104-C is built for repeated high-load use in professional diesel environments, making it a core tool for engine rebuilders and fleet service operations.
Key Features & Benefits
- Multi-Engine Compatibility: Works with Cummins NT, NH, N14 and Caterpillar 3406 / 3408 engines
- Press-Type Installation System: Provides controlled, even liner seating
- Maintains Alignment: Keeps liner square to block bore during installation
- Protects O-Rings & Sealing Surfaces: Prevents installation damage
- Ensures Proper Liner Protrusion: Critical for head gasket sealing and performance
- In-Frame Capable: Suitable for in-chassis rebuilds
- Heavy-Duty Construction: Built for repeated professional use
Typical Applications
- Cylinder liner installation (wet liners)
- Cummins NT / NH / N14 engine rebuilds
- Caterpillar 3406 / 3408 engine rebuilds
- In-frame overhaul procedures
- Heavy-duty truck, industrial, and marine diesel service
Why It Matters
Cylinder liner installation is one of the most precision-critical steps in engine rebuilding. Improper installation can lead to:
- Coolant leakage past liner seals
- Uneven liner protrusion
- Head gasket failure
- Reduced engine life
The M20104-C provides a controlled, repeatable installation method, ensuring liners are seated correctly and consistently across all cylinders.
For professional technicians, this means:
- Reduced risk of failure and rework
- Consistent liner height measurements
- Reliable long-term engine performance
