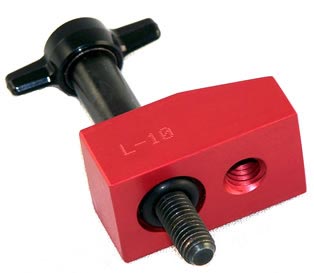

The M20120-5 Injector Setting Fixture Adapter is a precision-machined adapter designed for accurate injector height and injector setting procedures on Cummins L10 and M11 diesel engines. This adapter is used in conjunction with the M20120 injector setting fixture system, allowing technicians to correctly interface the fixture with L10 and M11 cylinder head geometry and set injectors to specification. (Included in M20120-A Kit. Replacement or upgrade to older kit)
Proper injector setting on Cummins L10 and M11 engines is critical to fuel delivery timing, combustion efficiency, and overall engine reliability. Injectors that are set too high or too low can cause hard starting, rough idle, loss of power, excessive smoke, elevated exhaust temperatures, and premature camshaft or injector wear. The M20120-5 adapter provides a stable, repeatable reference point so injector height can be set accurately and consistently.
Designed for professional diesel technicians, engine rebuild shops, and fleet maintenance facilities, this adapter expands the versatility of the M20120 fixture system and supports high-quality injector calibration during rebuilds and top-end service.
Compatibility Notes
-
Engine Families:
-
Cummins L10
-
Cummins M11
-
-
Required Base Tool:
-
M20120 Injector Setting Fixture (sold separately)
-
-
Not Compatible With:
-
Cummins NT / NH / N14
-
Cummins ISX / QSX platforms (require engine-specific fixtures or adapters)
-
Always confirm injector type and Cummins service specifications before final adjustment.
Key Features & Benefits
-
Engine-Specific Adapter: Precision fit for Cummins L10 and M11 injector setting geometry
-
Accurate Injector Height Control: Supports correct fuel timing and combustion performance
-
System Expansion: Allows one injector setting fixture to service multiple Cummins engines
-
Reduces Rework: Helps prevent drivability issues caused by incorrect injector adjustment
-
Professional-Grade Construction: Built for repeated use in demanding diesel service environments
Typical Applications
-
Injector height setting during engine rebuilds and overhauls
-
Top-end and fuel system service on Cummins L10 and M11 engines
-
Diesel repair shops, fleet maintenance facilities, and professional engine rebuild operations
Why It Matters
Injector height directly affects injection timing and engine performance. Even minor setting errors can have a major impact on power, emissions, and component life. The M20120-5 Cummins Injector Setting Fixture Adapter ensures injectors are set accurately the first time, helping deliver smooth operation, proper combustion, and long-term engine durability
