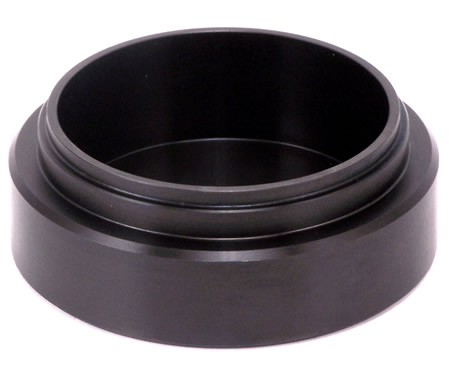

The M20132 Front Crankshaft Seal Installer is a precision-engineered installation tool designed for servicing front crankshaft oil seals on Cummins B Series engines (5.9L / 6.7L platforms), corresponding to reference 3824498. This tool is used during front cover service, gear housing repair, or full engine rebuild procedures to ensure correct seal placement and long-term sealing performance.
On Cummins B Series engines, the front crankshaft seal is installed into the front gear housing and seals directly against the crankshaft hub or vibration damper surface. Proper installation is critical because the seal must maintain:
- Uniform radial lip contact on the crankshaft surface
- Correct axial depth relative to the wear path
- Perfect concentric alignment with the crankshaft centerline
A key real-world issue on these engines is seal lip tracking. If the seal is installed slightly crooked or at the wrong depth, the lip may ride on:
- A worn groove in the crankshaft
- An unpolished surface
- Or outside the intended sealing surface
This leads to chronic front seal leaks, even immediately after installation.
The M20132 eliminates these risks by using a piloted installation design that aligns the seal with the crankshaft bore while applying even force across the seal face. This ensures:
- The seal is driven perfectly square into the housing
- The sealing lip is not rolled or inverted
- The seal is installed to precise depth relative to the crankshaft wear surface
Another critical factor is seal lip integrity during install. Cummins front seals often include:
- Pre-lubricated sealing lips
- Integrated dust lips
- Tight interference fit with the housing
Improper installation (hammering, sockets, flat plates) commonly causes:
- Rolled or cut seal lips
- Spring dislodgement inside the seal
- Micro-distortion that leads to early failure
The M20132 applies controlled, evenly distributed axial force, preventing these issues and ensuring the seal enters the bore smoothly without deformation.
This tool is especially important when:
- Installing seals over a wear sleeve or repair sleeve
- Replacing seals after front cover or damper service
- Performing in-frame repairs where access is limited
Manufactured from high-strength steel with precision-machined contact surfaces, the M20132 is built for repeated professional use and is essential for achieving OEM-level sealing results on Cummins B Series engines.
Key Features & Benefits
- Application-Specific Design: Fits Cummins B Series front seal geometry (5.9L / 6.7L)
- Reference Compatibility: Equivalent to Cummins 3824498
- Piloted Alignment System: Ensures concentric installation with crankshaft
- Controlled Installation Depth: Prevents improper seal positioning
- Protects Seal Lip Integrity: Eliminates rolling, cutting, or spring displacement
- Even Force Distribution: Prevents distortion during press-in
- Critical for Wear Sleeve Applications: Maintains correct sealing surface contact
- Heavy-Duty Construction: Built for repeated high-load shop use
Typical Applications
- Front crankshaft seal installation
- Front gear housing service
- Harmonic balancer / damper removal and reinstallation
- Engine rebuild and overhaul procedures
- Cummins B Series (5.9L / 6.7L) diesel service
Why It Matters
Front seal installation on Cummins B engines is one of the highest comeback-rate repairs when done incorrectly.
Common real-world failures include:
- Immediate oil leaks after startup
- Seal failure within hours due to lip damage
- Persistent leaks caused by incorrect depth or misalignment
The M20132 eliminates these issues by ensuring:
- Correct seal alignment
- Proper lip contact location
- Consistent installation depth
For technicians, this means:
- No repeat seal jobs
- Reduced warranty risk
- Reliable, long-term sealing performance
