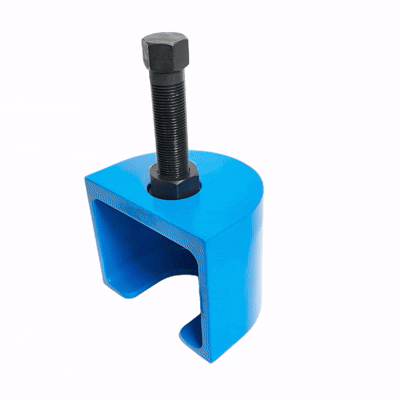

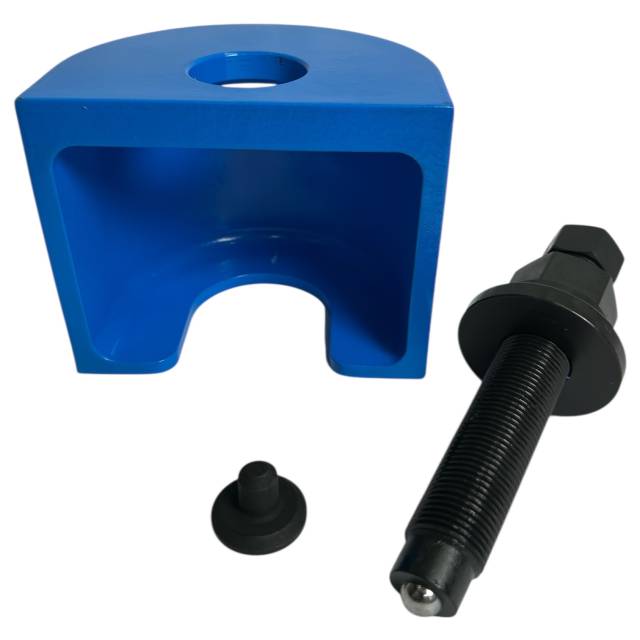

ZTSE4439 Pitman Arm Puller
The ZTSE4439 Pitman Arm Puller is a heavy-duty steering service tool designed to safely remove pitman arms from trucks and commercial vehicles equipped with Sheppard M-Series steering gears. It securely engages the pitman arm and applies controlled force to extract it from the steering box output shaft without damaging the arm, gear housing, or surrounding steering components.
Pitman arms are typically press-fit and often corroded or seized after years of service. Improper removal methods—such as hammering or prying—can bend the arm, damage the retainer, or compromise steering gear alignment. The ZTSE4439 uses a robust pulling mechanism to separate the arm cleanly and efficiently, making it an essential tool for steering system service and component replacement.
This tool is engineered for use in truck repair shops, fleet maintenance facilities, and dealer service centers where dependable steering repair is required on medium- and heavy-duty vehicles.
Key Features & Benefits
- Heavy-duty pitman arm puller designed for commercial steering service
- Applies steady, controlled pulling force for damage-free removal
- Works with Sheppard M-Series steering gears, including common heavy truck series such as 292, 392, and 492 models
- Helps prevent bent arms, damaged retainers, and steering gear housing marks
- Rugged construction built for repeated professional shop use
- Saves time and effort compared to improvised removal methods
Typical Applications
- Pitman arm removal during steering gear replacement
- Steering linkage maintenance and front-end service
- Truck fleet maintenance and heavy vehicle repair operations
Why It Matters
The pitman arm is a critical component of a truck’s steering system, transmitting motion from the steering box to the drag link and front wheels. Incorrect removal can result in bent components, seal damage, or alignment issues that compromise handling and safety. The ZTSE4439 Pitman Arm Puller allows technicians to perform this service reliably and efficiently, reducing downtime and repair costs.
