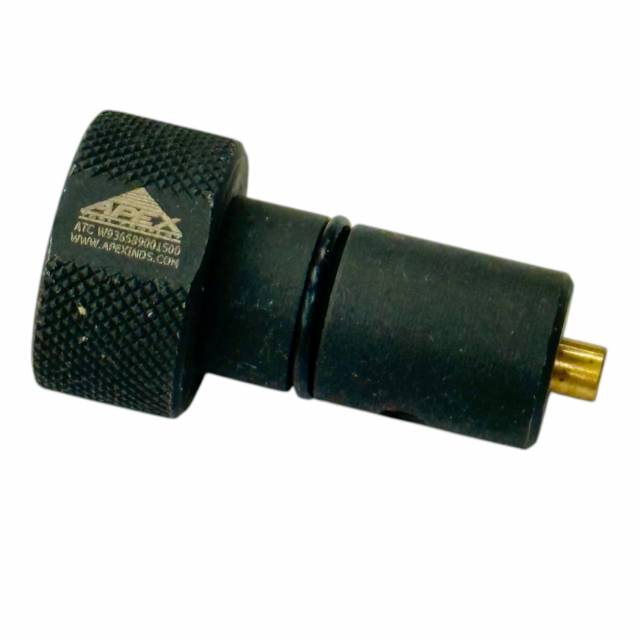

The W936589001500 TDC Locating Tool is a precision-engineered timing tool designed for accurately positioning the crankshaft at top dead center (TDC) on Detroit Diesel DD5 engines. This tool is essential for performing timing-critical service procedures where exact crankshaft positioning is required.
On DD5 engines, proper synchronization between the crankshaft, camshaft, and fuel system is critical for engine performance, emissions compliance, and component longevity. The W936589001500 is inserted into the designated timing port and engages with the flywheel or crankshaft indexing feature, providing a positive mechanical reference point for TDC.
Once engaged, the tool locks or indexes the crankshaft in the correct position, ensuring the engine cannot rotate during service operations. This allows technicians to perform procedures such as:
- Camshaft timing and alignment
- Injector timing and service
- Valve train adjustments
- Engine assembly and reassembly
Unlike relying on visual timing marks alone, this tool provides a precise and repeatable positioning method, eliminating guesswork and reducing the risk of timing errors.
Manufactured from high-strength, wear-resistant materials, the W936589001500 is built for repeated use in professional diesel repair environments and is a critical tool for servicing Detroit Diesel DD5 engines.
Key Features & Benefits
- Designed for Detroit Diesel DD5 Engines: Application-specific timing tool
- Accurate TDC Positioning: Ensures precise crankshaft alignment
- Positive Mechanical Engagement: Locks or indexes crankshaft securely
- Prevents Engine Rotation: Maintains stable position during service
- Improves Timing Accuracy: Eliminates reliance on visual alignment
- Durable Construction: Built for repeated professional use
- Essential for Timing Procedures: Critical for proper engine synchronization
Typical Applications
- Setting engine to top dead center (TDC)
- Camshaft timing and synchronization
- Injector timing and fuel system service
- Valve train adjustment procedures
- Engine rebuild and assembly operations
Why It Matters
Accurate crankshaft positioning is fundamental to engine timing. On Detroit Diesel DD5 engines, even slight misalignment can result in:
- Poor engine performance
- Increased emissions
- Hard starting or misfires
- Potential internal engine damage
The W936589001500 provides a reliable, repeatable TDC reference, ensuring all timing-related work is performed with precision.
For technicians, this means:
- Reduced risk of timing errors
- Faster setup during service procedures
- Consistent, professional repair results
