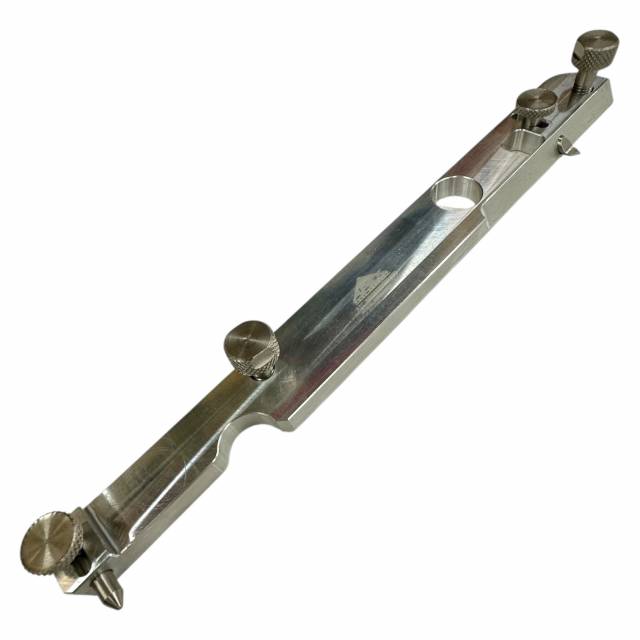

The W936589002300 Camshaft Timing Tool is a precision service tool designed for setting and verifying camshaft timing on Detroit Diesel DD5 engines.
Accurate camshaft timing is critical for maintaining proper synchronization between the crankshaft, camshaft, and fuel system. This tool is used in conjunction with a TDC locating pin to ensure the camshaft is positioned correctly during timing procedures.
The tool interfaces with the camshaft or timing components to hold or align the camshaft in the correct position, allowing technicians to perform adjustments and assembly with confidence.
It is commonly used during:
- Camshaft installation and timing
- Engine rebuild and reassembly
- Valve train service
- Timing verification procedures
Improper camshaft timing can result in:
- Poor engine performance
- Hard starting or misfires
- Increased emissions
- Potential internal engine damage
Key Features & Benefits
- Designed for Detroit Diesel DD5 engines
- Ensures accurate camshaft timing alignment
- Works with TDC positioning tools for complete timing setup
- Maintains correct camshaft position during service
- Improves timing accuracy and repeatability
- Prevents timing-related engine issues
- Durable construction for professional use
Typical Applications
- Camshaft timing and alignment
- Engine rebuild and assembly
- Valve train service
- Timing verification and adjustment
- Detroit Diesel DD5 engine maintenance
Why It Matters
Camshaft timing directly affects valve operation and engine performance. Incorrect timing can lead to:
- Reduced efficiency and power
- Engine misfires or rough operation
- Potential valve-to-piston interference
The W936589002300 ensures the camshaft is correctly aligned, allowing precise and reliable engine timing.
