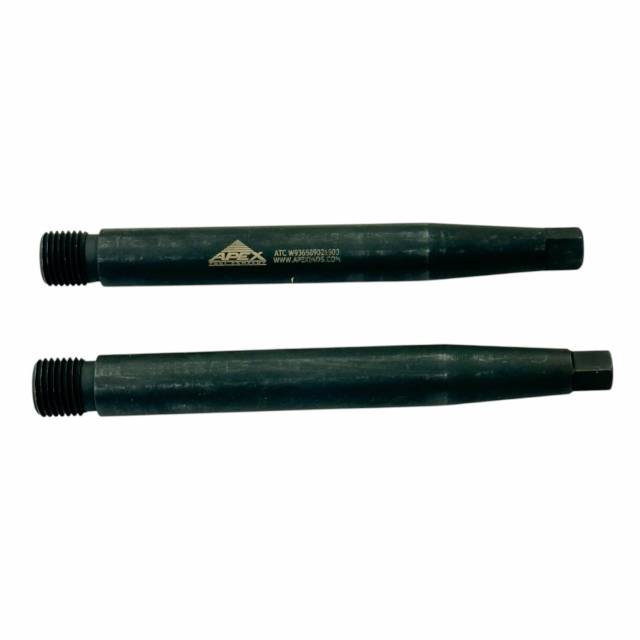

The ATCW936589021500 Flywheel Guide Pins are specialized alignment tools designed to assist with the removal and installation of the flywheel on Detroit Diesel DD5 engines.
These guide pins thread into the crankshaft flange, creating temporary alignment studs that support and guide the flywheel during service. This allows technicians to safely position the flywheel without damaging components or misaligning mounting holes.
On DD5 engines, the flywheel is a heavy, precision-mounted component. During installation, improper handling can lead to:
- Misalignment of bolt holes
- Damage to crankshaft flange threads
- Difficulty seating the flywheel evenly
The guide pins eliminate these issues by:
- Supporting the flywheel weight during positioning
- Ensuring proper alignment with crankshaft bolt pattern
- Allowing controlled installation before final bolt torque
This tool is part of the Detroit Diesel DD5 essential tool set and is specifically intended to aid in flywheel service procedures.
Key Features & Benefits
- Designed for Detroit Diesel DD5 engines
- Assists with flywheel removal and installation
- Provides alignment guidance during installation
- Supports flywheel weight for safer handling
- Prevents thread damage and misalignment
- Simplifies installation in confined spaces
- Durable construction for repeated professional use
Typical Applications
- Flywheel installation and removal
- Crankshaft flange alignment procedures
- Engine rebuild and reassembly
- Clutch and transmission service
- Detroit Diesel DD5 engine maintenance
Why It Matters
Flywheel installation is a precision-critical and physically demanding task. Without proper alignment tools, technicians may encounter:
- Misaligned mounting holes
- Cross-threaded bolts
- Uneven seating of the flywheel
The ATCW936589021500 ensures the flywheel is guided into position correctly, reducing installation time and preventing costly mistakes.
