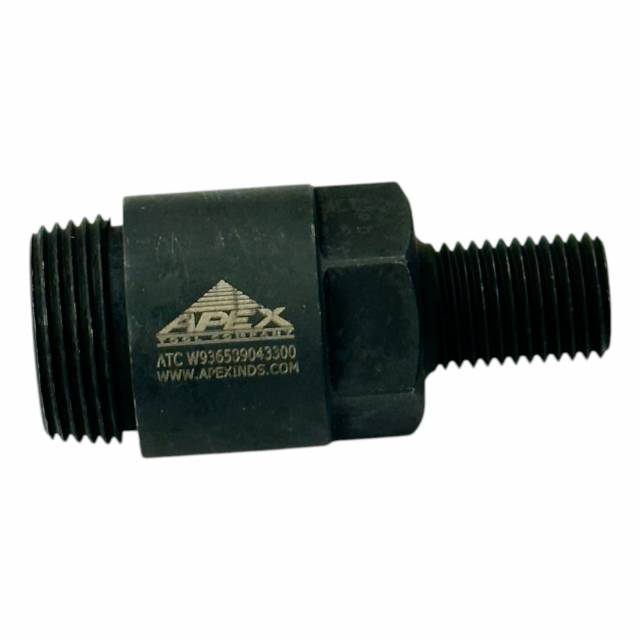

The W936589043300 High Pressure (HP) Injector Line Seal Extractor is a precision service tool designed for removing high-pressure injector line seals on Detroit Diesel engines. This tool enables safe extraction of seals from injector line ports without damaging sealing surfaces or surrounding components.
High-pressure fuel systems operate under extreme pressures and require perfect sealing integrity to maintain performance and safety. The seals used in these systems are often tightly seated and exposed to heat, fuel residue, and compression forces, making them difficult to remove without proper tooling.
The W936589043300 is engineered to:
- Access confined injector line ports
- Grip and extract seals cleanly
- Prevent scoring or damage to sealing bores
Improper seal removal methods—such as picks or improvised tools—can result in:
- Scratched or damaged sealing surfaces
- Improper seating of new seals
- Fuel leaks under high pressure
- Repeat repairs and downtime
This tool provides a controlled extraction method, allowing technicians to remove seals efficiently while preserving the integrity of the injector line and cylinder head interfaces.
Constructed from high-strength, wear-resistant materials, the W936589043300 is built for repeated use in professional diesel service environments and is essential for maintaining high-pressure fuel system reliability.
Key Features & Benefits
- Designed for Detroit Diesel HP Fuel Systems: Application-specific seal extraction tool
- Safe Seal Removal: Prevents damage to sealing surfaces
- Precision Tip Design: Allows access to tight injector line ports
- Improves Service Efficiency: Removes seals quickly and cleanly
- Prevents Fuel Leaks: Ensures proper preparation for new seal installation
- Durable Construction: Built for repeated professional use
Typical Applications
- High-pressure injector line seal removal
- Fuel system service and maintenance
- Injector line replacement procedures
- Engine overhaul and rebuild operations
- Detroit Diesel engine service
Why It Matters
High-pressure fuel systems demand perfect sealing. Even minor damage during seal removal can lead to:
- Fuel leaks under pressure
- Loss of system efficiency
- Safety risks and fire hazards
- Increased repair costs
The W936589043300 ensures seals are removed cleanly without compromising sealing surfaces, allowing new seals to be installed correctly.
For technicians, this means:
- Reduced risk of fuel system leaks
- Faster and safer service procedures
- Reliable, professional repair outcomes
